The RTQ6752-QT is an I2C interface programmable power management IC. The IC includes two synchronous boost converters for PAVDD, one synchronous NAVDD buck-boost, with 8-bit Calibrator and one RESET voltage detector. With available in a WET-WQFN-20L 5x5 package, this device is suitable for automotive TFT-LCD panel. The IC can operate from 2.5V to 5.5V input voltages. High switching frequency operation prevent that the switching noise to interfere AM band. Current-limit functions are provided for all internal- switch converters, and output-fault shutdown protects all converters against output-fault conditions, and output the FAULT signal to communicate with automotive computer. Programmable soft-start functions for all output voltage to limit input inrush current during startup.

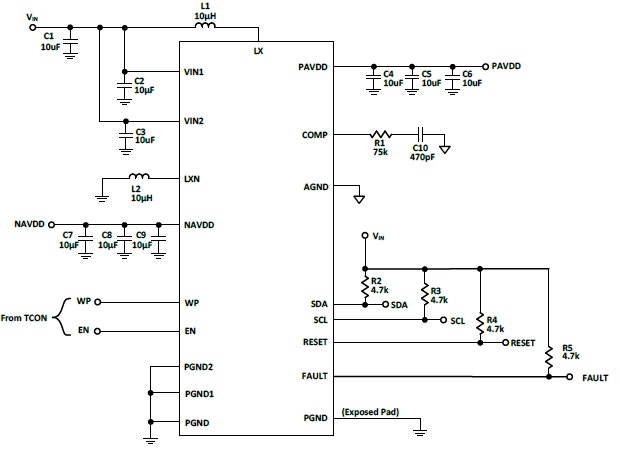

RTQ6752-QT Typical Circuit
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>2.5V to 5.5V Input Supply Voltage </li><li>I2C Interface </li><li>Power-on and Power-off Sequence Free </li><li>PAVDD Programmable Output Voltage 5V to 7.3V </li><li>PAVDD Output Current Capability up to 200mA </li><li>NAVDD Programmable Output Voltage -5V to -7.3V </li><li>NAVDD Output Current Capability up to 200mA </li><li>Outputs Power-off Discharge Function </li><li>Programmable Voltage Detector </li><li>AEC-Q100 Grade 2 Qualified </li><li>Built in UVLO, UVP, OVP, SCP and OTP Protection </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

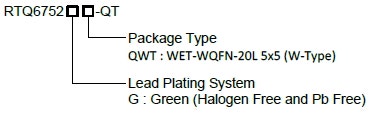

RTQ6752-QT Ordering Information
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RTQ6752-QT
technicalDocumentMultipleTable
design-tools
RTQ6752-QT
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Infotainment LCD panel </li></ul></div>
