The RTQ7880A-QT is a USB Type-C Power Delivery (USB-C PD) and PWM buck-boost controller with highly integrated by the specific functions and the flexibility for USB PD provider applications. The IC has embedded an ARM Cortex<sup>TM</sup>-M0 MCU so as to handle various functions of communication protocol, smart control of the PWM converter, firmware-based protections, and customized functions. The IC features hardware-based protections, such as inductor peak current limit, VBUS over-voltage protection (VBUS OVP), VO under-voltage protection (VO UVP), and VCONN current limit protection, so that the protections have faster responses and can still function properly even when the MCU is not activated. The RTQ7880A-QT hereby offers an excellent USB PD solution for a USB-PD Provider application with minimal external components and simple PCB layout.

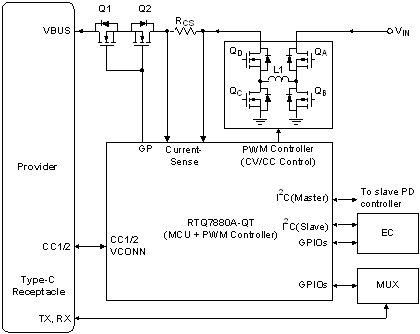

RTQ7880A-QT Typical Circuit
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Support USB Type-C Power Delivery (PD) Provider Application </li><li>AEC-Q100 Grade 2 Qualified </li><li>Operating Ambient Temperature : -40°C to 105°C </li><li>Type-C, USB PD and Communication Protocols <ul class="lv2"> <li></li><li>Compliant with USB PD 3.0 Specification, USB Type-C Cable and Connector Specification 1.2 </li><li>Alternate Mode and V<sub>CONN</sub> Output </li><li>Support Other Proprietary Communication Protocols through Internal MCU, DP and DM Pins </li></ul> </li><li>Integrated PWM Buck-Boost Controller <ul class="lv2"> <li></li><li>Wide Input Voltage Range : 4V to 36V </li><li>Peak-Current Mode PWM Operation </li><li>Programmable PWM Switching Frequency (200kHz to 600kHz) </li><li>Pulse-Skipping Mode for Light-Load Efficiency; Selectable Forced CCM Operation </li></ul> </li><li>AnyPower<sup>TM</sup> for Constant Voltage Output (in 10-Bit Resolution) and Constant Current (in 9-Bit Resolution) Output Settings </li><li>PD Safe® <ul class="lv2"> <li></li><li>Adjustable Converter Input Current Limit </li><li>Programmable VBUS OVP and VO UVP </li><li>Adjustable External OTP </li><li>VCONN1/2 Output Current Limit </li></ul> </li><li>Cable Voltage Drop Compensation for V<sub>BUS</sub> </li><li>Master and Slave I<sup>2</sup>C Interfaces </li><li>GPIOs for MUX Control or Customized Functions </li><li>Built-in Output Bleeders for Quick V<sub>BUS</sub> Discharge </li><li>Built-in Charge Pump for Driving Cost-Effective N-MOSFETs </li><li>Available in WQFN-48L 6x6 Package </li><li>Online Firmware Update via Slave I<sup>2</sup>C Interface <p></p> </li><li>USB PD PD3.0/PPS Certification Passed <p></p><p>(TID 1080016)</p> </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

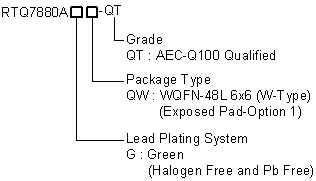

RTQ7880A-QT Ordering Information
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RTQ7880A-QT
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RTQ7880A-QT
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Automotive USB Type-C Power Delivery Charger </li></ul></div>
