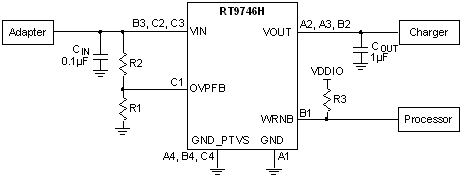

RT9746H

VBUS OVP with a PTVS Diode

RT9746H
New

The RT9746H is an overvoltage protection devices feature a low 35mΩ (typ) RON internal FET with PTVS diode. The PTVS also protects the devices from surges up to 100V. When the input voltage exceeds the over-voltage threshold, the internal FET is turned off to prevent damage to the protected down stream components. The internal Over-Voltage Protection (OVP) thresholds are preset to 6.8V typical.

The RT9746H is offered in a small WL-CSP-12B (BSC) package provides small PCB area applications.

Applications

  • Cellular Phone
  • Smart Handheld Device

Key Spec.

RT9746H
Status Active
Vin (min) (V) 3
Vin (max) (V) 6.7
Vin_ovp (typ) (V) 6.8
Delay Time (max) (us) 0.25
Ron (typ) (mOhm) 35
Features OVP
Package Type WL-CSP1.92x1.27-12(BSC)

Features

  • PTVS Diode Embedded for VBUS Surge Protection

  • Warning Indicator for OVP or UVP

  • 28V Maximum Rating for DC Adapter

  • Integrated Over-Voltage
    Protection FET on VBUS for Fault Isolation

Application Notes

Datasheet

DS9746H-04.pdf

Datasheet

DS9746H-04.pdf

RT9746HWSC
Package Type:WL-CSP1.92x1.27-12(BSC)
Sample Buy
Contact us for more information
