3-Channel Low Dropout RGB LED Driver

The RT9301 is a 3-Channel current source driver for RGB LED. It is easy to be designed in applications that need mixing RGB light source for multi-color output.

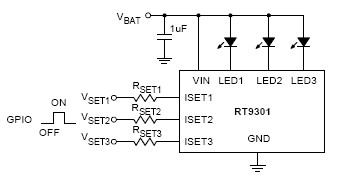

The RT9301 also provide users with great flexibility and device performance. It uses externals resistor to set the bias current for three LEDs, which are matched to 5%(max.). Users can adjust the output current from 2mA to 50mA by setting the ISET resistor.
The RT9301 features very low dropout and under voltage lockout protection. It is available in a space-saving TSOT-23-8 and WDFN-8L 3x3 packages.
