RT9302

3通道電流可調, 定電流 LED 驅動器

RT9302
New

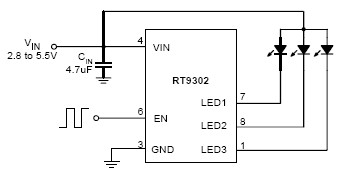

RT9302 是高性能的定電流 LED 驅動器，可對3只 LED 進行驅動，使它們以相同的電流進行工作。每個 LED 通道的電流可達 20mA，精度可達1%，通道間的匹配誤差在 0.7%以內。RT9302 提供16級亮度調節功能，LED 電流可在 1.25mA~20mA 之間進行設定，只需在 EN 端施加脈衝信號即可實現。只要 EN 端的信號被拉低超過 20μs，流過 LED 的電流即可被關斷，關斷以後的典型漏電流僅有 4μA。RT9302 的封裝是 TSOT-23-8，其最大高度為 1mm 。

應用

  • Mobile Phone, DSC, MP3
  • White LED Backlighting
  • LCD Display Supply

主要規格

RT9302
Status Active
Vin (min) (V) 2.8
Vin (max) (V) 5.5
Number of LEDs (max) (pcs) 3
Iout (max)/channel (mA) 20
Iq (typ) (mA) 0.4
Dimming Control Pulse
Topology Current Source
Features 100% Duty Cycle;Enable Input;Stable with Ceramic Capacitor;UVP
Package Type TSOT-28

關鍵特性

  • 支援最多3只 WLED

  • 每個通道輸出電流高達 20mA

  • 支持脈衝和 PWM 調光

  • 1% LED 電流精度

  • 0.7% LED 電流匹配誤差

  • 16級亮度控制

  • 低雜訊，無 EMI 之虞

  • 關機電流極低，僅 4μA

  • 符合 RoHS 規範，完全無鉛

Application Notes

Datasheet

DS9302-04.pdf

Datasheet

DS9302-04.pdf

RT9302GJ8
Package Type:TSOT-28
