RT9361A/RT9361B

电荷泵型 DC/DC 转换器

RT9361A/RT9361B
New

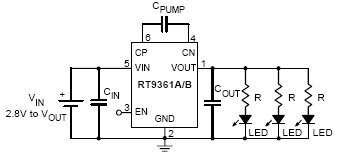

RT9361A/B 是高性能的电荷泵 DC/DC 转换器，它生成稳定的 4.5V/5V 输出电压，电路中无需使用电感器。其工作电压范围是 2.8V~VOUT ，内部软起动电路可有效降低其启动和模式转换期间的冲击电流。RT9363A/B 的静态电流消耗极低，具有过流保护和短路保护功能。RT9361A/B 有 WDFN-6L 2x2、 SOT-23-6 和 TSOT-23-6 等封装形式可供选择。

应用

  • Mobile phone, Smart Phone LED Backlight
  • Camera Flash White LED
  • LCD Display Supply

主要规格

RT9361A RT9361B
Status NRND NRND
Vin (min) (V) 2.8 2.8
Vin (max) (V) 5 4.5
SW Freq (typ) (kHz) 1000 1000
Iout (max)/channel (mA) 150 110
Iq (typ) (mA) 2 2
Topology Charge Pump Charge Pump
Features Enable Input;OCP;SCP;Stable with Ceramic Capacitor Enable Input;OCP;SCP;Stable with Ceramic Capacitor
Package Type SOT-26;TSOT-26;WDFN2x2-6 SOT-26;TSOT-26;WDFN2x2-6

关键特性

  • 工作电压范围： 2.8V~VOUT

  • 内含软启动功能

  • 5V/4.5V 恒定输出电压

  • 有过流保护功能

  • 有短路保护功能

  • 符合 RoHS 规范，完全无铅
