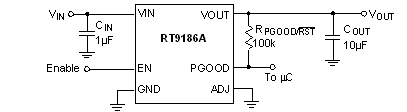

The RT9186A is a low-dropout linear regulator providing up to 500mA load current with 160mV dropout. It is especially designed for the application of portable and smart handheld device. The RT9186A operates from 2.5V to 5.5V supply. The internal P-MOSFET pass transistor allows the regulator to work with 190μA low quiescent current. Its preset output voltage version covers the most frequently used values, including 1.8V/2.5V/3.3V. Output voltage can also be adjusted via the ADJ pin for those other than the preset values. With only 0.1μA required in the shut down mode, one enable pin is able to control output on/off. The RT9186A contains PGOOD function.
2.5V to 5.5V Wide Input Range
Guaranteed 500mA Output Current
Low 160mV Dropout at 500mA
1.8V/2.5V/3.3V Preset Output Voltage Version with Adjustable Range from 0.8V to 4.5V
Power Good Output
Low 190μA Ground Pin Current
0.1μA Shutdown Current
Thermal and Over Current Protection
RoHS Compliant and 100% Lead (Pb)-Free
