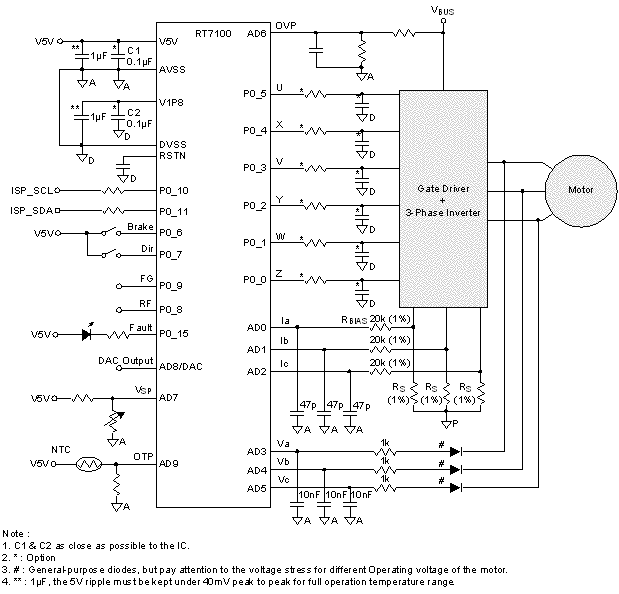

The RT7100 is an application-specific processor for PMSM/BLDC motor control applications. It integrates ARM 32-bit Cortex-M0 core and peripheral circuits to perform FOC and Sensorless motor control. The IC has integrated various system level peripheral functions, such as ADC, DAC, communication interface, SVPWM, watchdog timer, current sensing, undervoltage-lockout (UVLO), over-current protection (OCP) and motor lock protection so as to reduce component count, board space and system cost. By utilizing these features, the RT7100 provides a unique selection in a wide-range of motor drive applications. The RT7100 is available in a TSSOP-28 package.
Sensorless, Sinewave Field Oriented Control
ARM 32-bit Cortex-M0 CPU, Frequency up to 60MHz
Memories Size : 16KB MTP, Internal ROM with Embedded Motor Control Library and 4KB SRAM
Operating Voltage Range : 4.5V to 5.5V
Power Management : Normal or Deep Sleep
Programming Soft-Start
Communication Interface : I2C and UART
10-Channel 10-Bit ADC
1-Channel Current Type 6-Bit DAC
1-Channel Voltage Type 8-Bit DAC
Protections : OCP, UVLO and Motor Lock Protection
RT7100GC with Firmware Code UXYYY Certified by UL for IEC-60730-1 Class B Compliance with Recognized Marking :
UL Certified No. E478780 (UL60730)
