RT9711

80mΩ, 1.5A High-Side Power Switches with Flag

RT9711
New

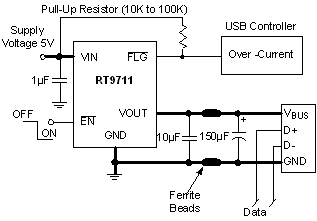

The RT9711 is a low voltage, single N-MOSFET high-side power switch, optimized for self-powered and bus- powered Universal Serial Bus (USB) applications. The RT9711 equipped with a charge pump circuitry to drive the internal MOSFET switch; the switch's low RDS(ON), 80mΩ, meets USB voltage drop requirements; and a flag output is available to indicate fault conditions to the local USB controller.
Additional features include soft-start to limit inrush current during plug-in, thermal shutdown to prevent catastrophic switch failure from high-current loads, under-voltage lockout (UVLO) to ensure that the device remains off unless there is a valid input voltage present. The maximum current is limited to typically 2.5A in dual ports in accordance with the USB power requirements, lower quiescent current as 25μA making this device ideal for portable battery-operated equipment.
The RT9711 is available in SOT-23-5 and SOP-8 packages requiring minimum board space and smallest components.

Applications

  • USB Bus/Self Powered Hubs
  • USB Peripherals
  • ACPI Power Distribution
  • PC Card Hot Swap
  • Notebook, Motherboard PCs
  • Battery-Powered Equipment
  • Hot-Plug Power Supplies
  • Battery-Charger Circuits

Key Spec.

RT9711
Status Last Time Buy
Recommended Alternative  RT9742
Number of Outputs 1
Vin (min) (V) 2.5
Vin (max) (V) 5.5
Ron (typ) (mOhm) 80
Iq (typ) (mA) 0.025
Current Limit (typ) (A) 2.5
FLAG Indicator Yes
Iocp Adjustable No
Safety UL
Switch Type Power Switch
Features Cycle-by-Cycle Current Limit;Enable Input;SCP
Package Type SOT-25;SOP-8

Features

  • Compliant to USB Specifications

  • Built-In N-MOSFET
      ♦ Typical RDS(ON) : 80mΩ (SOT-23-5), 90mΩ (SOP-8)

  • Output Can Be Forced Higher Than Input (Off-State)

  • Low Supply Current : 25μA Typical at Switch On State 1μA Typical at Switch Off State

  • Guaranteed 1.5A Continuous Load Current

  • Wide Input Voltage Ranges : 2.5V to 5.5V

  • Open-Drain Fault Flag Output

  • Hot Plug-In Application (Soft-Start)

  • 1.7V Typical Under-Voltage Lockout (UVLO)

  • Current Limiting Protection

  • Thermal Shutdown Protection

  • Reverse Current Flow Blocking (no body diode)

  • UL Approved-E219878

  • RoHS Compliant and 100% Lead (Pb)-Free
