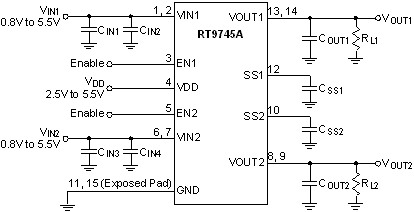

RT9745A

双通道, 低阻值负载开关

RT9745A
New

RT9745A 是一个具有致能脚位、小体积、超低 RON 的双通道负载开关。产品内含两个 N-MOSFET，可操作在输入电压范围从0.8V至5.5V，且单一通道最大电流可输出6A。每一个开关皆独立由致能脚位(EN1和EN2)控制，可直接和低电压控制讯号连接。RT9745A 提供WDFN-14TL 3x2 封装。

应用

  • UltrabookTM
  • 笔记本电脑
  • 平板
  • 消费电子
  • 机顶盒
  • 电信系统
  • 固态硬盘 (SSD)

主要规格

RT9745A
Status Active
Number of Outputs 2
Vin (min) (V) 0.8
Vin (max) (V) 5.5
Ron (typ) (mOhm) 27
Iq (typ) (mA) 0.055;0.075
FLAG Indicator No
Iocp Adjustable No
Switch Type Load Switch
Features Adjustable Soft-Start;Enable Input
Package Type WDFN3x2-14T

关键特性

  • 集成双通道负载开关

  • 输入电压范围： 0.8V至5.5V

  • 超低 RON 阻抗
    ► RON = 27mΩ at VIN = 5V (VDD = 5V)
    ► RON = 27mΩ at VIN = 3.6V (VDD = 5V)
    ► RON = 27mΩ at VIN = 1.8V (VDD = 5V)

  • 每通道6A 最大连续开关电流

  • 低静态电流
    ► 75μA (双通道)
    ► 55μA (单通道)

  • 启动电压最低可以使用 1.4V/1.8V/2.5V/3.3V

  • 可配置的上升时间

  • 快速输出放电 (QOD)

  • 自适应放电电流

  • 14T引脚WDFN封装与散热垫

  • 符合 RoHS 标准及不含卤素
