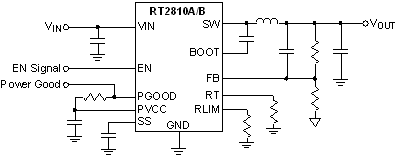

10A, 18V, 500kHz, ACOT^TM Synchronous Step-Down Converter

RT2810A/RT2810B

The RT2810A/B is a synchronous step-down converter with Advanced Constant On-Time (ACOT^TM) mode control. The ACOT^TM provides a very fast transient response with few external components. The low impedance internal MOSFET supports high efficiency operation with wide input voltage range from 4.5V to 18V. The proprietary circuit of the RT2810A/B enables to support all ceramic capacitors. The output voltage can be adjustable between 0.7V and 8V. The soft-start is adjustable by an external capacitor.

Applications

Industrial and Commercial Low Power Systems
Computer Peripherals
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key Spec.

	RT2810A	RT2810B
Status	Active	Active
Vin (min) (V)	4.5	4.5
Vin (max) (V)	18	18
Number of Outputs	1	1
Vout (min) (V)	0.7	0.7
Vout (max) (V)	8	8
Output Adj. Method	Resistor	Resistor
Iout (max) (A)	10	10
Current Limit (typ) (A)	13.3	13.3
Freq (min) (kHz)	300	300
Freq (max) (kHz)	700	700
Ext Sync	No	No
Ron_HS (typ) (mOhm)	12	12
Ron_LS (typ) (mOhm)	5.4	5.4
Iq (typ) (mA)	0.8	0.8
Features	ACOT Control;Adjustable Frequency;Adjustable Soft-Start;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP	ACOT Control;Adjustable Frequency;Adjustable Soft-Start;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP
Package Type	UQFN3x3-16J(FC)	UQFN3x3-16J(FC)
