23V, 6A, 500kHz, ACOT^® 同步Buck转换器

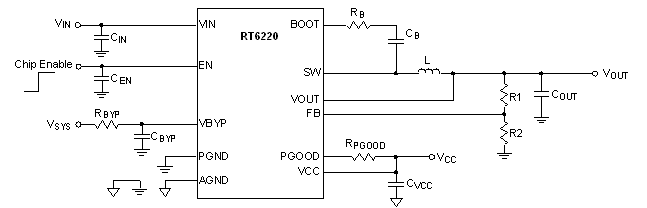

RT6220

RT6220是采用改进型固定导通时间ACOT^®控制架构的同步Buck转换器，无需使用外部补偿元件而具有快速的瞬态响应能力，可在4.5V~23V输入电压下工作，具有过流保护、欠压保护、过压保护等完备的保护性设计，内建1.5ms软启动时间，提供开漏的Power Good指示信号输出。

	RT6220A	RT6220B
Status	Active	Active
Vin (min) (V)	4.5	4.5
Vin (max) (V)	23	23
Number of Outputs	1	1
Vout (min) (V)	0.6	0.6
Vout (max) (V)	5	5
Output Adj. Method	Resistor	Resistor
Iout (max) (A)	6	6
Current Limit (typ) (A)	9.5	9.5
Freq (typ) (kHz)	500	500
Ext Sync	No	No
Ron_HS (typ) (mOhm)	31	31
Ron_LS (typ) (mOhm)	20	20
Iq (typ) (mA)	0.1	0.11
Features	ACOT Control;Built-in Bootstrap Switch;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Force PWM;Internal Compensation;OCP;OTP;OVP;Power Good;SCP;Stable with Ceramic Capacitor;UVP	ACOT Control;Built-in Bootstrap Switch;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Force PWM;Internal Compensation;OCP;OTP;OVP;Power Good;SCP;Stable with Ceramic Capacitor;UVP
Package Type	UQFN3x3-16(FC)	UQFN3x3-16(FC)
