23V, 6A, 500kHz, ACOT^® 同步Buck轉換器

RT6230

Hot

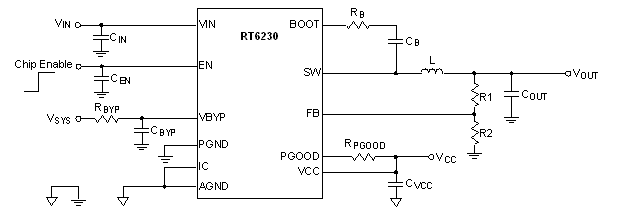

RT6230是採用改進型固定導通時間ACOT^®控制架構的同步Buck轉換器，週邊元件少，瞬態回應速度快，工作電壓範圍為6V~23V，具備過流保護、欠壓保護和過壓保護等完善的保護功能設計。它還具有內置的1.5ms軟啟動時間，有一個開漏的Power Good信號輸出。

	RT6230A	RT6230B
Status	Active	Active
Vin (min) (V)	6	6
Vin (max) (V)	23	23
Number of Outputs	1	1
Vout (min) (V)	5	5
Vout (max) (V)	12	12
Output Adj. Method	Resistor	Resistor
Iout (max) (A)	6	6
Current Limit (typ) (A)	9.5	9.5
Freq (typ) (kHz)	500	500
Ext Sync	No	No
Ron_HS (typ) (mOhm)	31	31
Ron_LS (typ) (mOhm)	20	20
Iq (typ) (mA)	0.1	0.11
Features	ACOT Control;Built-in Bootstrap Switch;COT Control;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;Internal Compensation;OCP;OTP;OVP;Power Good;SCP;Stable with Ceramic Capacitor;UVP	ACOT Control;Built-in Bootstrap Switch;COT Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Force PWM;Internal Compensation;OCP;OTP;OVP;Power Good;SCP;Stable with Ceramic Capacitor;UVP
Package Type	UQFN3x3-16(FC)	UQFN3x3-16(FC)
