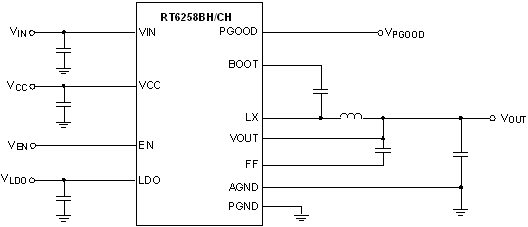

RT6258BH/RT6258CH

集成3.3V/5V线性稳压器的23V, 8A同步Buck转换器

RT6258BH/RT6258CH
New

RT6258BH/CH 是采用改进型固定导通时间（ACOT®）控制架构的同步 Buck 转换器，具有极其快速的瞬态响应能力。RT6258BH 的工作电压范围为 4.5V ~ 23V，RT6258CH 的工作电压范围为 5.1V ~ 23V。

应用

  • 工商业用低功率系统
  • 计算机外设
  • 液晶显示器和电视机
  • 节能电器
  • 高性能DSP、FPGA和ASIC的负载点调节器

主要规格

RT6258BH RT6258CH
Status Active Active
Vin (min) (V) 4.5 5.1
Vin (max) (V) 23 23
Number of Outputs 1 1
Vout (min) (V) 3.267 5.049
Vout (max) (V) 3.333 5.151
Output Adj. Method Fixed Fixed
Iout (max) (A) 8 8
Current Limit (typ) (A) 10.4 10.4
Freq (typ) (kHz) 500 750
Ext Sync No No
Ron_HS (typ) (mOhm) 20 20
Ron_LS (typ) (mOhm) 10 10
Iq (typ) (mA) 0.1 0.1
Features ACOT Control;Built-in Bootstrap Switch;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;OCP;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP;Ultrasonic Mode Control ACOT Control;Built-in Bootstrap Switch;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;OCP;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP;Ultrasonic Mode Control
Package Type UQFN3x3-12H(FC) UQFN3x3-12H(FC)

关键特性

  • 工作电压范围：4.5V ~ 23V (RT6258BH)；5.1V ~ 23V (RT6258CH)

  • 负载能力：8A

  • ACOT® 控制架构，瞬态响应速度快

  • 容许使用 MLCC 输出电容

  • 固定工作频率：750kHz (RT6258CH)；500kHz (RT6258BH)

  • 集成 20mΩ/10mΩ MOSFET 上/下桥功率开关

  • 集成负载能力 100mA 的 3.3V (RT6258BH) / 5V (RT6258CH) 线性稳压器

  • 输出预偏置软启动设计

  • 逐周期过流限制保护

  • 输入欠压锁定保护

  • 过热关机保护

  • 输出过压/欠压保护

  • 支持超声工作模式

Application Notes

Datasheet

DS6258BH_CH-00.pdf

Datasheet

DS6258BH_CH-00.pdf

RT6258BHGQUF
Package Type:UQFN3x3-12H(FC)
样品 购买
与销售人员联系以获取更多信息
