5A, 30V, 500kHz Asynchronous Step-Down Converter

RT6285

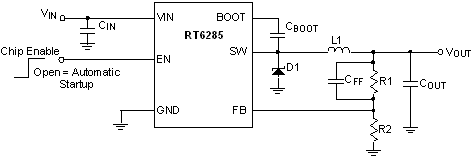

The RT6285 is a step-down regulator with an internal power MOSFET. It achieves 5A of continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. For protection, the RT6285 provides cycle-by-cycle current limiting and thermal shutdown protection. The soft-start reduces the stress on the input source at startup. In shutdown mode, the regulator draws only 25μA of supply current.

The RT6285 requires a minimum number of readily available external components, providing a compact solution. The RT6285 is available in the SOP-8 (Exposed Pad) package.

Applications

Distributive Power Systems
Battery Charger
DSL Modems
Pre-regulator for Linear Regulators

Key Spec.

	RT6285
Status	Active
Vin (min) (V)	5.5
Vin (max) (V)	30
Number of Outputs	1
Vout (min) (V)	1.222
Vout (max) (V)	24
Output Adj. Method	Resistor
Iout (max) (A)	5
Current Limit (typ) (A)	7.5
Freq (typ) (kHz)	500
Ext Sync	No
Ron_HS (typ) (mOhm)	110
Iq (typ) (mA)	0.6
Features	Current Mode Control;Enable Input;Force PWM;Internal Compensation;OCP;OTP;Stable with Ceramic Capacitor
Package Type	PSOP-8
