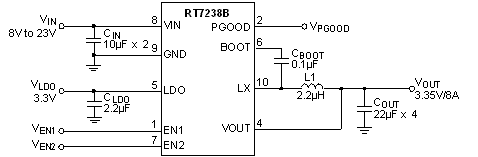

RT7238B/RT7238C/RT7238D/RT7238E

8A, 23V, 500kHz Synchronous Step-Down Converter with 3.3V/5V LDO

RT7238B/RT7238C/RT7238D/RT7238E
New

The RT7238B/C/D/E is an advanced constant on-time (ACOTTM) mode synchronous step-down converter. The main control loop of RT7238B/C/D/E using an advanced constant on-time (ACOTTM) mode control which provides a very fast transient response. The RT7238B/C/D/E operates from 8V to 23V input voltage. For the RT7238D, the output voltage can be adjusted between 0.6V to 5V.

Applications

  • Industrial and Commercial Low Power Systems
  • Computer Peripherals
  • LCD Monitors and TVs
  • Green Electronics/Appliances
  • Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key Spec.

RT7238B RT7238C RT7238D RT7238E
Status Last Time Buy EOL NRND EOL
Vin (min) (V) 8 8 8 8
Vin (max) (V) 23 23 23 23
Number of Outputs 2 2 2 2
Vout (min) (V) 3.35 5.1 0.6 5
Vout (max) (V) 3.35 5.1 5 5
Output Adj. Method Fixed Fixed Resistor Fixed
Iout (max) (A) 8 8 8 8
Current Limit (typ) (A) 9 9 12 9
Freq (typ) (kHz) 500 500 500 500
Freq (min) (kHz) 450 450 450 450
Freq (max) (kHz) 550 550 550 550
Ext Sync No No No No
Ron_HS (typ) (mOhm) 27 27 27 27
Ron_LS (typ) (mOhm) 10 10 10 10
Iq (typ) (mA) 0.11 0.11 0.11 0.11
Features ACOT Control;Adjustable Current Limit;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Low Dropout;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP ACOT Control;Adjustable Current Limit;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Low Dropout;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP ACOT Control;Adjustable Current Limit;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Low Dropout;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP ACOT Control;Adjustable Current Limit;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Low Dropout;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP
Package Type UQFN3x3-10(FC) UQFN3x3-10(FC) UQFN3x3-10(FC) UQFN3x3-10(FC)

Features

  • Advanced Constant On-Time (ACOT) Control

  • 8V to 23V (RT7238B/C/D/E) Input Voltage Range @ 8A Output Current

  • ACOTTM Mode Performs Fast Transient Response

  • ACOTTM Architecture to Enable all MLCC Output Capacitor Usage

  • Fixed 500kHz Switching Frequency

  • High Efficient Internal Power MOSFET Switch
    ► 27mΩ (High-Side) and 10mΩ (Low-Side)

  • Adjustable Output Voltage from 0.6V to 5V (RT7238D)

  • Fixed 3.3V (RT7238B/D) or 5V (RT7238C/E) LDO Output Supplies 70mA

  • Pre-biased Soft-Start

  • Cycle-by-Cycle Over-Current Protection

  • Input Under-Voltage Lockout

  • Thermal Shutdown

  • Output Over/Under-Voltage Protection
