RT7259

10A, 24V, 600kHz 同步驱动降压型 DC/DC 转换器

RT7259
New

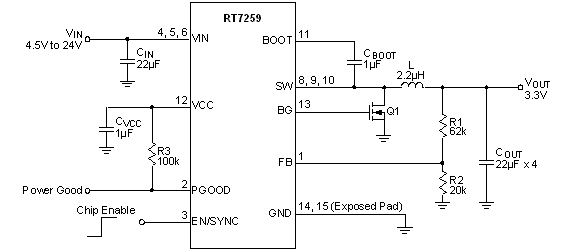

RT7259为内部集成了用于高端的功率MOSFET与对低端功率MOSFET的闸极驱动电路的同步整流DC/DC降压型转压器，输入范围4.5V至24V时，可输出电流达10A。RT7259的电流模式架构与可因应大范围的输入与负载变化的瞬时响应进行优化的补偿。逐周期形式的限流机制可在输出短路时提供电路保护作用，缓启动机制则可消除启动瞬间的输入电流涌浪的问题。此外，RT7259可由外部的时序信号进行频率300kHz至1.5MHz范围内的同步操作。RT7259采用WDFN-14L 4x3的封装规格。

应用

  • Point of Load Regulator in Distributed Power System
  • Digital Set top Boxes
  • Personal Digital Recorders
  • Broadband Communications
  • Flat Panel TVs and Monitors

主要规格

RT7259
Status Active
Vin (min) (V) 4.5
Vin (max) (V) 24
Number of Outputs 1
Vout (min) (V) 0.808
Vout (max) (V) 15
Output Adj. Method Resistor
Iout (max) (A) 10
Current Limit (typ) (A) 16
Freq (typ) (kHz) 600
Freq (min) (kHz) 300
Freq (max) (kHz) 1500
Ext Sync Yes
Ron_HS (typ) (mOhm) 45
Iq (typ) (mA) 0.9
Features Built-in Bootstrap Switch;Current Mode Control;Cycle-by-Cycle Current Limit;Enable Input;External Synchronization;Force PWM;Internal Compensation;OCP;OTP;Power Good;Stable with Ceramic Capacitor;UVP
Package Type WDFN4x3-14

关键特性

  • 4.5V 至 24V 的输入电压范围

  • 10A输出电流

  • 45mΩ 的内部集成高端 N-MOSFET

  • 电流模式控制

  • 600kHz 切换频率

  • 0.808V至 15V的可调输出电压

  • 效率高达95%

  • 内部的补偿机制

  • 可采用陶瓷电容达到输出稳定

  • 外部时序信号同步范围: 300kHz 至 1.5MHz

  • 逐周期电流限制

  • 输入低电压锁定

  • 输出低电压保护

  • 电源良好信号指示

  • 热关断保护

  • 符合RoHS规范与无卤特性
