RT7264A

4A, 21V, 500kHz Synchronous Step-Down Converter

RT7264A
New

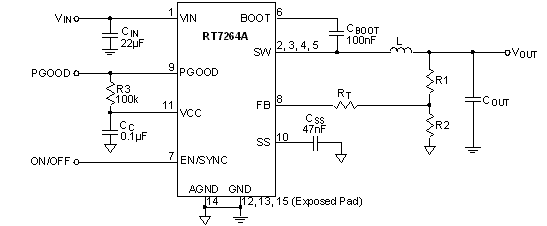

The RT7264A is a synchronous step-down regulator with an internal power MOSFET. It achieves 4A of continuous output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization.
Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. An adjustable soft-start reduces the stress on the input source at startup.
The RT7264A requires a minimal number of readily available external components, providing a compact solution.

Applications

  • Distributive Power Systems
  • Battery Charger
  • DSL Modems
  • Pre-Regulator for Linear Regulators

Key Spec.

RT7264A
Status Active
Vin (min) (V) 4.5
Vin (max) (V) 21
Number of Outputs 1
Vout (min) (V) 0.808
Vout (max) (V) 15
Output Adj. Method Resistor
Iout (max) (A) 4
Current Limit (typ) (A) 7.5
Freq (typ) (kHz) 500
Freq (min) (kHz) 300
Freq (max) (kHz) 2000
Ext Sync Yes
Ron_HS (typ) (mOhm) 120
Ron_LS (typ) (mOhm) 40
Iq (typ) (mA) 0.7
Features Adjustable Soft-Start;Current Mode Control;Enable Input;External Synchronization;Force PWM;Internal Compensation;OCP;OTP;Power Good;Stable with Ceramic Capacitor;UVP
Package Type PSOP-8

Features

  • Wide Input Range : 4.5V to 21V

  • Adjustable Output from 0.808V to 15V

  • 4A Output Current

  • 120mΩ/40mΩ Internal Power MOSFET Switch

  • Internal Compensation Minimizes External Parts

  • 500kHz Fixed Switching Frequency

  • Synchronized External Clock from 300kHz to 2MHz

  • Adjustable Soft-Start

  • Cycle-by-Cycle Over Current Limit

  • Thermal Shutdown Protection

  • Available in SOP-8 (Exposed Pad) and WDFN-14L 4x3 Packages

  • RoHS Compliant and Halogen Free
