2A, 2MHz, Synchronous Step-Down Regulator

RT8015

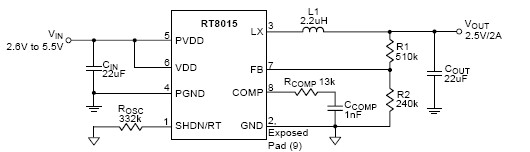

The RT8015 is a high efficiency synchronous, step-down DC/DC converter. Its input voltage range is from 2.6V to 5.5V and provides an adjustable regulated output voltage from 0.8V to 5V while delivering up to 2A of output current.
The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. 100% duty cycle provides low dropout operation extending battery life in portable systems. Current mode operation with external compensation allows the transient response to be optimized over a wide range of loads and output capacitors.
RT8015 operation in forced continuous PWM Mode which minimizes ripple voltage and reduces the noise and RF interference. 100% duty cycle in Low Dropout Operation further maximize battery life.

Applications

Portable Instruments
Battery-Powered Equipment
Notebook Computers
Distributed Power Systems
IP Phones
Digital Cameras

Key Spec.

	RT8015
Status	Active
Vin (min) (V)	2.6
Vin (max) (V)	5.5
Number of Outputs	1
Vout (min) (V)	0.8
Vout (max) (V)	5
Output Adj. Method	Resistor
Iout (max) (A)	2
Current Limit (typ) (A)	3.8
Freq (typ) (kHz)	1000
Freq (min) (kHz)	300
Freq (max) (kHz)	2000
Ext Sync	No
Ron_HS (typ) (mOhm)	110
Ron_LS (typ) (mOhm)	110
Iq (typ) (mA)	0.46
Features	100% Duty Cycle;Adjustable Frequency;Current Mode Control;Force PWM;OCP;Stable with Ceramic Capacitor;UVP
Package Type	PSOP-8
