RT8056

1A, 1.5MHz 双通道同步降压型 DC/DC 转换器

RT8056
New

RT8056为高效率脉波宽度调变(PWM)的双通道同步降压型 DC/DC 转换器。输入范围2.8V 至5.5V时，输出电流可达1A。RT8056适用于由单一锂电池供电的可携式电子装置，例如移动电话、PDA、PC WLAN卡与掌上型装置。RT8056提供了两种操作模式:PWM/低压降自动切换模式与关机模式。内部的低RDS(ON)同步整流元件降低了操作在PWM模式的的导通损耗，且不需外加萧特基二极管于实际设计中。RT8056当PWM操作时无法连续导通上端P-MOSFET时，进入低压降模式。当EN脚位为低电位时，进入关机模式，消耗电流小于0.1μA。由于操作在恒定频率1.5MHz，可由较小封装的元件进行滤波设计得到较平滑的切换纹波。

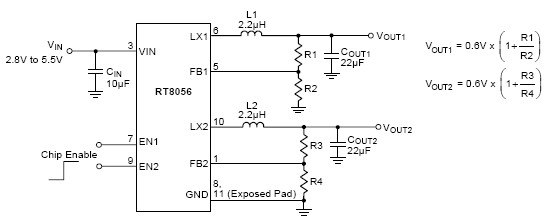

应用

  • Portable Instruments
  • Microprocessors and DSP Core Supplies
  • Cellular Phones
  • Wireless and DSL Modems
  • PC Cards
  • Set Top Box

主要规格

RT8056
Status Active
Vin (min) (V) 2.8
Vin (max) (V) 5.5
Number of Outputs 2
Vout (min) (V) 0.6
Vout (max) (V) 5.5
Output Adj. Method Resistor
Iout (max) (A) 1
Current Limit (typ) (A) 1.5
Freq (typ) (kHz) 1500
Ext Sync No
Ron_HS (typ) (mOhm) 280
Ron_LS (typ) (mOhm) 290
Iq (typ) (mA) 0.3
Features 100% Duty Cycle;Current Mode Control;Enable Input;Force PWM;Internal Compensation;OCP;OTP;Stable with Ceramic Capacitor
Package Type WDFN3x3-10

关键特性

  • 2.8V 至 5.5V 的输入电压范围

  • 1.5MHz 定频PWM操作

  • 2 x 1A输出电流

  • 效率达95%

  • 不需外加萧特基二极管

  • 0.6V 的参考电压允许低电压输出

  • 低压降操作 : 100% 的占空比

  • 10-接脚 的WDFN 封装

  • 符合RoHS规范与无卤特性
