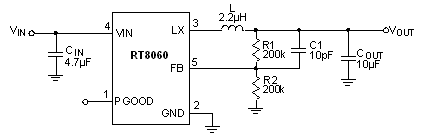

The RT8060 is a current mode, high efficiency PWM step-down DC/DC converter that can support a wide input voltage range from 2.7V to 5.5V, while delivering up to 1A output current. The current mode operation provides fast transient response and eases loop stabilization.A 1.5MHz frequency operation allows the use of a smaller inductor to meet the space and height limitations handheld applications.The RT8060 is available in a SOT-23-5 package.
2.7V to 5.5V Wide Input Voltage Range
Adjustable Output Voltage
1A Output Current
Up to 95% Efficiency
1.5MHz Fixed Frequency PWM Operation
Power Good Indicator
Over Current Protection
Internal Sort-Start
No Schottky Diode Required
Internal Compensation
RoHS Compliant and Halogen Free
