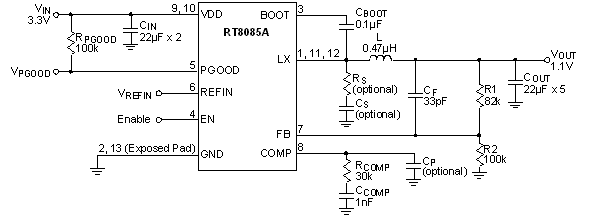

The RT8085A is a high efficiency switching converter for applications operating input voltage from 2.95V to 5.5V and requiring up to 6A maximum load. This single-chip converter provides extremely compact, fast and accurate power delivery solutions for low output voltage applications. The RT8085A provides the reference input REFIN to allow a dynamic output voltage change. The RT8085A automatically switches from Continuous Conduction Mode (CCM) to Discontinuous Conduction Mode (DCM) for light load efficiency.
External Reference Input REFIN
Low On-Resistance► 38mΩ of High-Side MOSFET► 20mΩ of Low-Side MOSFET
DCM Operation for Light Load Efficiency
Support MLCC Capacitors
700kHz Switching Frequency
Power Good Indictor
Enable Control
Cycle-by-Cycle Current Limit
Short-Circuit Protection
Latch Off UVP
Thermal Shutdown
RoHS Compliant and Halogen Free
