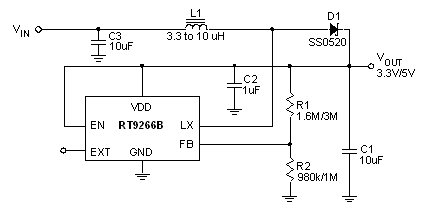

The RT9266B is a compact, high efficiency, and low voltage step-up DC/DC converter with an Adaptive Current Mode PWM control loop, includes an error amplifier, ramp generator, comparator, switch pass element and driver in which providing a stable and high efficient operation over a wide range of load currents. It operates in stable waveforms without external compensation.The low start-up input voltage below 1V makes RT9266B suitable for 1 to 4 battery cells applications with a 500mA internal switch. The 550kHz high switching rate minimized the size of external components. Besides, the 25μA low quiescent current together with high efficiency maintains long battery lifetime.
1V Low Start-up Input Voltage at 1mA Load
25μA Quiescent (Switch-off) Supply Current
Zero Shutdown Mode Supply Current
90% Efficiency
550kHz Switching Frequency at 3.3V VDD
Providing Flexibility for Using Internal and External Power Switches
Small SOT-23-6 Package
RoHS Compliant and 100% Lead (Pb)-Free
