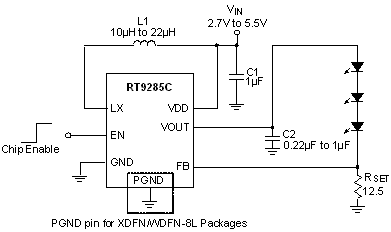

The RT9285C is a high frequency asynchronous boost converter with internal diode, which can support 2 to 5 White LEDs for backlighting and OLED power supply. The Internal soft start function can reduce the inrush current. The device operates with 1MHz fixed switching frequency to allow small external components and to simplify possible EMI problems. The device comes with 20V over voltage protection to allow inexpensive and small-output capacitors with lower voltage rating. The LED current is initially set with the external sense resistor RSET, and the feedback voltage is 250mV. Tiny package type TSOT-23-6, XDFN-8L 2x2 and WDFN-8L 2x2 packages provide the best solution for PCB space saving and total BOM cost.
VIN Operating Range : 2.7V to 5.5V
Up to 85% Efficiency
22V Internal Power NMOS
1MHz Switching Frequency
Built-in Diode
Digital Dimming with Zero-Inrush
Input UVLO Protection
Output Over Voltage Protection
Internal Soft Start and Compensation
TSOT-23-6, 8-Lead XDFN and WDFN Package
RoHS Compliant and 100% Lead (Pb)-Free
