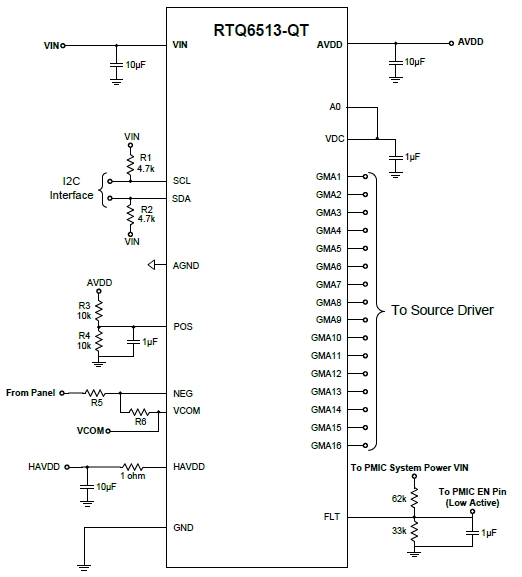

RTQ6513-QT

10-Bit Programmable Gamma Reference for TFT-LCD Panel

RTQ6513-QT
New

The RTQ6513 is a 400kHz I2C interface programmable gamma reference for LCD application. The IC provides 16-CH gamma corrections under 10-bit resolution, 1-CH VCOM Operational Amplifier and 1-CH rail to rail HAVDD Buffer under 10-bit resolution. The RTQ6513 can operate with up to 18V maximum analog supply voltage and provides OCP, OTP function to protect IC. The RTQ6513 is available in a WQFN-32L 5x5 package.

Applications

  • TFT-LCD Panels
  • Automotive Display Module

Key Spec.

RTQ6513-QT
Status Active
Vin (min) (V) 2.9
Vin (max) (V) 18
Number of Channels 16
Number of Buck Converters 0
Number of Boost Converters 0
Number of Negative Outputs 0
Number of LED Drivers 0
Number of LDO Regulators 0
Application Automotive;LCD Bias
Features AEC-100 Qualified;I2C;OCP;OVP;SCP
Package Type WQFN5x5-32

Features

  • 16-CH Gamma Correction

  • 1-CH VCOM Operational Amplifier

  • 1-CH Rail to Rail HAVDD Buffer

  • 10-Bit Resolution for Gamma and HAVDD

  • 18V Maximum Analog Supply Voltage

  • Over Current Protection Function

  • Over Temperature Protection Function

  • Integrated MTP Memory

  • 400kHz I2C Interface

  • AEC-Q100 Grade 2 Qualified
