RT9026

DDR Termination Regulator

RT9026
New

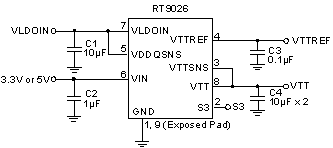

RT9026 is a 3A sink/source tracking termination regulator. It is specifically designed for low-cost and low-external component count systems. The RT9026 possesses a high speed operating amplifier that provides fast load transient response and only requires 20μF of ceramic output capacitance. The RT9026 supports remote sensing functions and all features required to power the DDRI/II/III and low-power DDRIII/DDRIV VTT bus termination according to the JEDEC specification. In addition, the RT9026 includes integrated sleep-state controls placing VTT in High-Z in S3 (suspend to RAM) and soft-off for VTT and VTTREF in S5 (shutdown). The RT9026 is available in the thermal efficient package SOP-8 (Exposed Pad), MSOP-10 (Exposed Pad) and WDFN-10L 3x3.

Applications

  • DDRI/II/III and Low-Power DDRIII/DDRIV Memory Termination
  • SSTL-2, SSTL-18
  • HSTL Termination

Key Spec.

RT9026
Status NRND
Memory Supported DDRI;DDRII;DDRIII;DDRIV
Vin (min) (V) 1.2
Vin (max) (V) 3.3
VTT Output Tolerance (max) (+/- mV) 40
Isource/Isink (max) (A) 3
Standby Current (typ) (mA) 0.3
Current Limit (typ) (A) 4
Features Enable Input;OCP
Package Type MSOP-10(PP);PSOP-8;WDFN3x3-10

Features

  • Support DDRI, DDRII, DDRIII, Low-Power DDRIII and DDRIV Requirement
    ► Source/Sink 3A for DDRI and DDRII
    ► Source/Sink 2A for DDRIII
    ► Source/Sink 1.5A for Low-Power DDRIII
    ► Source/Sink 1.2A for Low-Power DDRIV

  • Input Voltage Range : 3.15V to 5.5V

  • VLDOIN Voltage Range : 1.2V to 3.3V

  • Requires Only 20μF Ceramic Output Capacitance

  • Supports High-Z in S3 and Soft-Off in S5

  • Integrated Divider Tracks 1/2 VDDQSNS for Both VTT and VTTREF

  • Remote Sensing (VTTSNS)

  • ±20mV Accuracy for VTT and VTTREF

  • 10mA Buffered Reference (Sourcing/Sinking) (VTTREF)

  • Built-In Soft-Start

  • Over Current Protection

  • Thermal Shutdown Protection

  • SOP-8 (Exposed Pad), MSOP-10 (Exposed Pad) and 10-Lead WDFN Package

  • RoHS Compliant and Halogen Free

Datasheet

DS9026-07.pdf

Datasheet

DS9026-07.pdf

RT9026GFP
Package Type:MSOP-10(PP)
Sample Buy
RT9026GQW
Package Type:WDFN3x3-10
Sample Buy
RT9026GSP
Package Type:PSOP-8
Sample Buy
Contact us for more information
