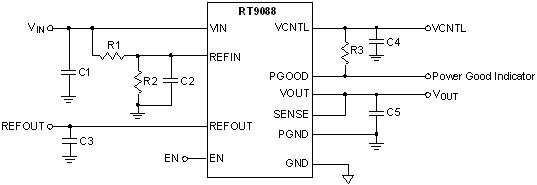

The RT9088 is a sink/source tracking termination regulator. It is specifically designed for low-cost and low-external component count systems. The RT9088 possesses a high speed operating amplifier that provides fast load transient response and only requires a minimum 30μF ceramic output capacitor. The RT9088 supports remote sensing functions and all features required to power the DDRIII and Low Power DDRIII / DDRIV VTT bus termination according to the JEDEC specification. In addition, the RT9088 provides an open-drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge VTT during S3 (suspend to RAM) for DDR applications. The RT9088 is available in the thermal efficient package, WDFN-10L 3x3.
VIN Input Voltage Range: 1.1V to 3.5V
VCNTL Input Voltage Range: 2.9V to 5.5V
Support Ceramic Capacitors
Power Good Indicator
10mA Source/Sink Reference Output
Meet DDRI, DDRII JEDEC Spec
Support DDRIII, Low Power DDRIII/DDRIV VTT Applications
Soft-Start Function
UVLO and OCP Protection
Thermal Shutdown
