overview

1. General Description

<p class="bady">The Evaluation Board demonstrates the RT1735’s capability to be designed for Type-C interface overvoltage protection IC. The RT1735 protects the high voltage shorted to VBUS to adjacent pins of CC/SBU up to 28V due to USB Power Delivery (PD), which allows VBUS from 3.3 to 28V sourcing.</p> <p class="bady">The RT1735 is integrated with the protection against ESDs as per IEC61000-4-2 standards, with contact discharge of <span lang="EN-US" style="font-family:Symbol;color:black">±</span>8kV on CON_CC1/CON_CC2, D1/D2 and CON_SBU1/ CON_SBU2. </p>

2. Performance Specification Summary

<p class="bady">Table 1 shows the summary of the RT1735 Evaluation Board performance specificiaiton. The ambient temperature is 25°C.</p> <p class="MsoNormal">Table 1. RT1735 Evaluation Board Performance Specification Summary</p> <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Specification</p> </td> <td width="189" style="width:142.05pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Test Conditions</p> </td> <td width="51" style="width:38.3pt;border:solid #009EB8 1.0pt;border-left:none; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Min</p> </td> <td width="51" style="width:38.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Typ</p> </td> <td width="51" style="width:38.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Max</p> </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Unit</p> </td> </tr> <tr style="height:17.0pt"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VDD Input Voltage Range</p> </td> <td width="189" style="width:142.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="51" style="width:38.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">2.5</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">5.5</p> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CC1/2 Swtich Current </p> </td> <td width="189" style="width:142.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="51" style="width:38.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle"><span lang="EN-US" style="font-size:10.0pt;font-family:Symbol">-</span>1.25</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">1.25</p> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">A</p> </td> </tr> <tr style="height:17.0pt"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">SBU1/2 Swtich Current</p> </td> <td width="189" style="width:142.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="51" style="width:38.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle"><span lang="EN-US" style="font-size:10.0pt;font-family:Symbol">-</span>100</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">100</p> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">mA</p> </td> </tr> <tr style="height:1.0cm"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpFirst">CON_CC1/2 & CON_SBU1/2 & D1/2 </p> <p class="ListParagraph1CxSpMiddle">IEC 61000-4-2 Contact Discharge</p> </td> <td width="189" style="width:142.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> </td> <td width="51" style="width:38.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> <p class="ListParagraph1CxSpMiddle"><span lang="EN-US" style="font-size:10.0pt;font-family:Symbol">-</span>8k</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">8k</p> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:1.0cm"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpFirst">CON_CC1/2 & CON_SBU1/2 & D1/ </p> <p class="ListParagraph1CxSpMiddle">IEC 61000-4-2 Air Discharge</p> </td> <td width="189" style="width:142.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> </td> <td width="51" style="width:38.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:1.0cm"> <p class="ListParagraph1CxSpMiddle"><span lang="EN-US" style="font-size:10.0pt;font-family:Symbol">-</span>15k</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">15k</p> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> <tr style="height:17.0pt"> <td width="298" style="width:223.75pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CON_CC1/2 & CON_SBU1/2 Short to VBUS</p> </td> <td width="189" style="width:142.05pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td width="51" style="width:38.3pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt; height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">--</p> </td> <td width="51" style="width:38.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">28</p> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">V</p> </td> </tr> </table> </div>

3. Power-up Procedure

<h3>Suggestion Required Equipments</h3> <ul> <li>RT1735 Evaluation Board </li> <li>DC power supply capable of at least 28V and 5A</li> <li>Oscilloscope</li> </ul>

4. Proper measurement equipment setup and follow the procedure below.

<p class="MsoNormal">1) With power off, connect the input power supply to the VDD and GND pins.</p> <p class="MsoNormal">2) Turn on the power supply at VDD. Make sure that the CC/SBU Switch turn on. </p> <p class="MsoNormal">3) Once the Switch is turn, test OVP threshold and OVP & ESD performance.</p>

5. Detailed Description of Hardware

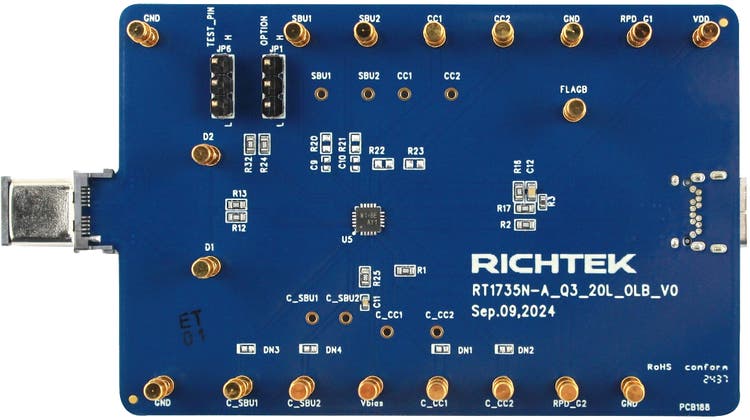

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image001_en.png"><img width="567" height="318" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image001_en.png" alt="一張含有 文字, 電子工程, 電路, 電子產品 的圖片 自動產生的描述" /></a></p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image002_en.png"><img width="567" height="316" id="圖片 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image002_en.png" alt="一張含有 藍色, 電路, 電子產品 的圖片 描述是以中可信度自動產生" /></a></p> <p class="MsoNormal">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:1.85pt;border-collapse:collapse; border:none"> <thead> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpFirst">Test Point/</p> <p class="23CxSpMiddle">Pin Name</p> </td> <td width="85%" style="width:85.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpLast">Function</p> </td> </tr> </thead> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VDD</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Input voltage.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">FLAGB</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Open-drain output cautioning fault condition.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VBIAS</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">VBIAS pin connect capacitor for ESD protection. Put a 0.1µF capacitor on this pin to ground.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CON_CC1</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Type-C connector side CC1 switch. Connect the CC1 pin of the USB Type-C connector.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CON_CC2</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Type-C connector side CC2 switch. Connect the CC2 pin of the USB Type-C connector.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CON_SBU1</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Type-C connector side SBU1 switch. Connect the SBU1 pin of the USB Type-C connector.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CON_SBU2</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Type-C connector side SBU2 switch. Connect the SBU2 pin of the USB Type-C connector.</p> </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpFirst">RPD_G1</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpLast">If dead battery resistors are required, short pin to CON_CC1. If dead battery resistors are not required, short pin to GND.</p> </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpFirst">RPD_G2</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpLast">If dead battery resistors are required, short pin to CON_CC2. If dead battery resistors are not required, short pin to GND.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CC1</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">System side of the CC1 switch. Connect to the CC pin of the CC/PD controller.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">CC2</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">System side of the CC2 switch. Connect to the CC pin of the CC/PD controller.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">SBU1</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">System side of the SBU1 switch. Connect to the SBU pin of the SBU MUX.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">SBU2</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">System side of the SBU2 switch. Connect to the SBU pin of the SBU MUX.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">D1</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">USB2.0 IEC ESD protection. Connect to the USB2.0 pins of the USB Type-C connector.</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">D2</p> </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">USB2.0 IEC ESD protection. Connect to the USB2.0 pins of the USB Type-C connector.</p> </td> </tr> </table>

7. Bill of Materials

<div> <table class="TableNormal" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Reference</p> </td> <td width="38" style="width:28.7pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Count</p> </td> <td width="130" style="width:97.3pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Part Number</p> </td> <td width="126" style="width:94.5pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Value</p> </td> <td width="111" style="width:83.25pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Description</p> </td> <td width="110" style="width:82.6pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Package</p> </td> <td width="95" style="width:70.9pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="TableParagraph">Manufacturer</p> </td> </tr> </thead> <tr style="height:17.0pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="MsoNormal">U5</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="MsoNormal">RT1735N-A</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="MsoNormal">RT1735N-A</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="MsoNormal">OVP Switch</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> <p class="MsoNormal">WQFN-20L 3x3</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">U2</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">121U-AC2C-0XXT</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">USB TYPE C Plug Conntecter</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">USB TYPE C Plug Conntecter</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">12.6x10.6x4.1 mm</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">JEM</p> </td> </tr> <tr style="height:39.7pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">USB1</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:39.7pt"> <p class="MsoNormal">1</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">C-NBR2L-00-00</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">USB TYPE-C Female Conntecter</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">USB TYPE-C Female Conntecter</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">9.24x9.1mm</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:39.7pt"> <p class="MsoNormal">ADVANCED-CONNECTEK</p> </td> </tr> <tr style="height:39.7pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">C9, C10, C11</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:39.7pt"> <p class="MsoNormal">3</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">0402B104K500CT</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">100nF</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">Capacitor, Ceramic, 50V, X7R</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">0402</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:39.7pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:39.7pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">C12</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:39.7pt"> <p class="MsoNormal">1</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">0603X105K250CT</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">1µF</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">Capacitor, Ceramic, 25V, X5R</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:39.7pt"> <p class="MsoNormal">0603</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:39.7pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:64.65pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:64.65pt"> <p class="MsoNormal">R1, R2, R12, R13, R16, R17, R24, R25, R32</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:64.65pt"> <p class="MsoNormal">9</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:64.65pt"> <p class="MsoNormal">WR06X000 PTL</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:64.65pt"> <p class="MsoNormal">0Ω</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:64.65pt"> <p class="MsoNormal">Resistor, Chip, 1/10W, 1%</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:64.65pt"> <p class="MsoNormal">0603</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:64.65pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">R3</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">1</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">RTT021003FTH</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">100kΩ</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">Resistor, Chip, 1/16W, 1%</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">0402</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">RALEC</p> </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">R20, R21 </p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">2</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">WR06X30R1FTL</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">30.1Ω</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">Resistor, Chip, 1/10W, 1%</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">0603</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">R22, R23</p> </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">2</p> </td> <td width="130" style="width:97.3pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">WR06X30R0FTL</p> </td> <td width="126" style="width:94.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">30Ω</p> </td> <td width="111" style="width:83.25pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">Resistor, Chip, 1/10W, 1%</p> </td> <td width="110" style="width:82.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> <p class="MsoNormal">0603</p> </td> <td width="95" style="width:70.9pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> <p class="MsoNormal">WALSIN</p> </td> </tr> </table> </div>

8. Typical Applications

<h3>EVB Schematic Diagram</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image003_en.png"><img border="0" width="683" height="510" id="Picture 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image003_en.png" alt="Technical Document Image Preview" /></a></p>

9. Measurement Result

<table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" valign="top" style="width:229.8pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">CC Switch Ron</p> </td> <td width="307" valign="top" style="width:230.35pt;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">SBU Switch Ron</p> </td> </tr> <tr style="height:168.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image004_en.jpg"><img border="0" width="292" height="221" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image005_en.jpg"><img border="0" width="292" height="224" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" valign="top" style="width:229.8pt;border:solid #009EB8 1.0pt; border-top:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">CC Switch Turn on Timing</p> </td> <td width="307" valign="top" style="width:230.35pt;border-top:none;border-left: none;border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">SBU Switch Turn on Timing</p> </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image006_en.jpg"><img border="0" width="292" height="205" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image006_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image007_en.jpg"><img border="0" width="292" height="200" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image007_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">CC Clamp Voltage on System Side</p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> <p class="MsoNormal">SBU Clamp Voltage on System Side</p> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image008_en.jpg"><img border="0" width="303" height="210" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image008_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt"> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image009_en.jpg"><img border="0" width="304" height="209" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image009_en.jpg" alt="Technical Document Image Preview" /></a></p> </td> </tr> </table>

10. Evaluation Board Layout

<p class="bady">Figure 1 to Figure 8 are RT1735 Evaluation Board layout. This board size is 82mm x 51mm and is constructed on eight-layer PCB, outer layers with 1 oz. Cu and inner layers with 1 oz. Cu.</p> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image010_en.jpg"><img border="0" width="680" height="422" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image010_en.jpg" alt="一張含有 文字, 電子工程, 電路, 數字 的圖片 自動產生的描述" /></a></p> <p class="23CxSpLast">Figure 1. Top View (1^st layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image011_en.jpg"><img border="0" width="681" height="421" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image011_en.jpg" alt="一張含有 螢幕擷取畫面, Rectangle, 圖表 的圖片 自動產生的描述" /></a></p> <p class="10">Figure 2. PCB Layout—Inner Side (2^nd Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image012_en.jpg"><img border="0" width="680" height="424" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image012_en.jpg" alt="一張含有 螢幕擷取畫面, Rectangle 的圖片 自動產生的描述" /></a></p> <p class="10">Figure 3. PCB Layout—Inner Side (3^rd Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image013_en.jpg"><img border="0" width="680" height="423" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image013_en.jpg" alt="一張含有 螢幕擷取畫面, 圖表, 設計 的圖片 自動產生的描述" /></a></p> <p class="10CxSpFirst">Figure 4. PCB Layout—Inner Side (4^th Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image014_en.jpg"><img border="0" width="680" height="421" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image014_en.jpg" alt="一張含有 螢幕擷取畫面, Rectangle 的圖片 自動產生的描述" /></a></p> <p class="10">Figure 5. PCB Layout—Inner Side (5^th Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image015_en.jpg"><img border="0" width="680" height="422" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image015_en.jpg" alt="一張含有 螢幕擷取畫面, 文字, Rectangle, 行 的圖片 自動產生的描述" /></a></p> <p class="10CxSpFirst">Figure 6. PCB Layout—Inner Side (6^th Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image016_en.jpg"><img border="0" width="680" height="420" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image016_en.jpg" alt="一張含有 螢幕擷取畫面, 設計 的圖片 自動產生的描述" /></a></p> <p class="10">Figure 7. PCB Layout—Inner Side (7^th Layer)</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image017_en.jpg"><img border="0" width="680" height="393" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt1735n-a/html-images/image017_en.jpg" alt="一張含有 螢幕擷取畫面, 圖表, 文字, 行 的圖片 自動產生的描述" /></a></p> <p class="10CxSpFirst">Figure 8. Bottom View (8^th Layer)</p>
