1. Purpose

<p class="MsoNormal">The RT2101A is a synchronous step-down converter with the input voltage range from 2.95V to 6V and provides 3A output current. This document explains the function and use of the RT2101A evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT2101A is a high efficiency step-down converter and capable of delivering 3A output current over a wide input voltage range from 2.95V to 6V. The RT2101A provides accurate regulation for a variety of loads with ±3% accuracy. For reducing inductor size, it provides up to 2MHz switching frequency. The efficiency is maximized through the integrated 45mΩ MOSFETs and 550μA typical supply current. Under voltage lockout voltage of the RT2101A is 2.7V, and it also provides external setting by a resistor network on the enable pin. The RT2101A provides protections such as inductor current limit under voltage lockout and thermal shutdown. The over temperature threshold is 145°C. The RT2101A is available in WQFN-16L 3x3 package.</p> <h3><br /> Product Feature</h3> <ul> <li>Integrated 45m<span style="font-family:Symbol">W</span><span style="font-family:Symbol"> </span>MOSFETs</li> <li>Input Range : 2.95V to 6V</li> <li>Adjustable PWM Frequency : 700kHz to 2MHz</li> <li>Output Current : 3A</li> <li>95% Efficiency</li> <li>Adjustable Soft-Start</li> <li>Power Good Indicator</li> <li>Enable Control</li> <li>Under Voltage Lockout</li> <li>Current Limit</li> <li>Thermal Shutdown</li> </ul>

3. Key Performance Summary Table

<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td width="65%" style="width:65.06%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB038_V1</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Input Voltage Range</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">2.95V to 6V</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">3A</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">1.8V</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">RT2101AGQW, WQFN-16L 3x3</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Operation Frequency</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Adjustable from 700kHz to 2MHz</p> </td> </tr> </table>

4. Bench Test Setup Conditions

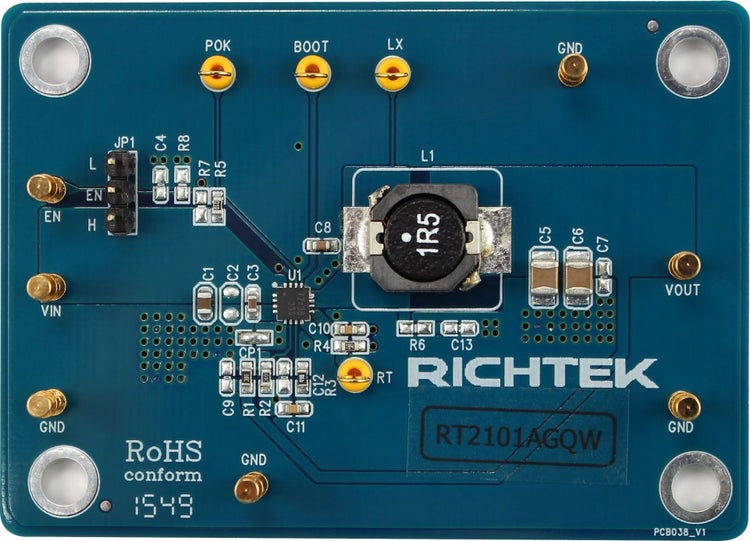

<h3>Headers Description and Placement </h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image001_en.jpg"><img width="419" height="302" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image001_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="2">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p> <h3><br /> Test Points</h3> <p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:1.0cm"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td width="27%" style="width:27.72%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpMiddle">Signal</p> </td> <td width="58%" style="width:58.38%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Input voltage</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Power input.</p> </td> </tr> <tr style="height:39.7pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="ListParagraph1">EN</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="MsoNormal">Enable test point</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:39.7pt"> <p class="ListParagraph1">Chip Enable. Externally pulled high to enable and pulled low to disable thischip. It is internally pulled up to high when the pin is floating.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Power Ground.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">PGOOD</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Power good test point</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">Output of power good indicator.</p> </td> </tr> <tr style="height:1.0cm"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1">BOOT</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="MsoNormal">Bootstrap supply test point</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1">Bootstrap supply for high-side gate driver. Connect a 0.1µF ceramic capacitor between the BOOT and SW pins.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">LX</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Switch node test point</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">Connect this pin to an external L-C filter.</p> </td> </tr> <tr style="height:17.0pt"> <td width="13%" style="width:13.9%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">RT/SYNC</p> </td> <td width="27%" style="width:27.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Clock input</p> </td> <td width="58%" style="width:58.38%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Frequency Setting and External Synchronous.</p> </td> </tr> </table> <h3><br /> Power-up & Measurement Procedure</h3> <p class="MsoListParagraph">1. Apply a 12V nominal input power supply (2.95V < V_IN < 6V) to the VIN and GND terminals.</p> <p class="MsoListParagraph">2. Set the jumper at JP1 to connect terminals 1 and 2, connecting EN to enable operation.</p> <p class="MsoListParagraph">3. Verify the output voltage (approximately 1.8V) between VOUT and GND.</p> <p class="MsoListParagraph">4. Connect an external load up to 3A to the VOUT and GND terminals and verify the output voltage and current.</p> <h3><br /> Output Voltage Setting</h3> <p class="MsoNormal">Set the output voltage with the resistive divider (R1, R2) between VOUT and GND with the midpoint connected to FB. The output is set by the following formula :</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image002_en.png"><img border="0" width="150" height="35" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image002_en.png" alt="Technical Document Image Preview" /></a></p>

5. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="a5"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image003_en.jpg"><img border="0" width="680" height="390" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a></p> <h3><br /> Bill of Materials</h3> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Reference</p> </td> <td width="5%" style="width:5.56%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Qty</p> </td> <td width="25%" style="width:25.5%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Part number</p> </td> <td width="21%" style="width:21.26%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Description</p> </td> <td width="15%" style="width:15.9%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Package</p> </td> <td width="13%" style="width:13.72%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Manufacturer</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">U1</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RT2101AGQW</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">DC-DC Converter</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WQFN-16L 3x3</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Richtek</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R1</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RTT031182FTP</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">11.8k</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">旺詮</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R2</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1002FTL</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10k</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R3</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X7871FTL</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">7.68k</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R4</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1803FTL</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">180k</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R5</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1003FTL</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">100k</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C1</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C2012X5R1C106KT</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10µF/16V/X5R</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0805</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C3</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C1608X5R1E105KT000E</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1µF/25V/X5R</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C5, C6</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">GRM32ER61C226KE20L</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">22µF/16V/X7R</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-1210</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">muRata</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C8</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C1608X7R1H104KT000N</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0.1µF/50V/X7R</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C10</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603B103K500</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10nF/50V/x7R</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C11</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0603B332K500</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">3.3nF/50V/X7R</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="18%" style="width:18.08%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">L1</p> </td> <td width="5%" style="width:5.56%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="25%" style="width:25.5%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">7447714015</p> </td> <td width="21%" style="width:21.26%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1.5µH/10A</p> </td> <td width="15%" style="width:15.9%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">10 x 10 x 5 mm</p> </td> <td width="13%" style="width:13.72%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WE</p> </td> </tr> </table> <h3><br /> PCB Layout</h3> <p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image004_en.jpg"><img border="0" width="454" height="326" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23CxSpMiddle">Top View (1^st layer)</p> <p class="23CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image005_en.jpg"><img border="0" width="453" height="326" id="圖片 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt2101agqw/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23CxSpLast">Bottom View (4^th Layer)</p>
