overview

1. Purpose

<p class="MsoNormal">The RT6208 is a high voltage Buck converter that can deliver up to 100mA output current from a wide input voltage range of 4.5V to 36V. This document explains the function and use of the RT6208 evaluation board (EVB) and provides information to enable operation and modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT6208 is a high-efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to 100mA output current from a 4.5V to 36V input supply. It requires only 25µA typical supply current at no load while maintaining output voltage regulation. The RT6208 achieves Boundary Conduction Mode (BCM) operation, low quiescent current and programmable high-side peak current limit, providing high efficiency over a wide range of load currents. It also provides soft-start protection to eliminate input current surge during start-up. The low current (3µA) shutdown mode provides output disconnect, enabling easy power management in battery-powered systems. The RT6208 is available in a SOT-23-6, SOT-23-8 and SOP-8 (Exposed Pad, with power good function) packages.</p>

3. Product Feature

<ul> <li> Achieves Very High Efficiency in Low Load Conditions </li> <li> ±1% High Accuracy Feedback Voltage </li> <li> 4.5V to 36V Input Voltage Range </li> <li> 100mA Output Current </li> <li> Integrated High-Side and Low-Side Switches </li> <li> No Compensation Required </li> <li> Low Quiescent Current </li> <li> Adjustable Peak Current Limit </li> <li> Cycle-by-Cycle Over Current Protection </li> <li> Input Under Voltage Lockout </li> <li> Internal Soft-Start </li> <li> Thermal Shutdown Protection </li> </ul>

4. Key Performance Summary Table

<div> <table width="680" class="MsoTableLightListAccent2" style="border: currentcolor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation Board Number : PCB051_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">12V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">100mA</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">1.8V, 3.3V, 5V Optional</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">RT6208GE, SOT-23-6</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Operation Mode</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Boundary Conduction Mode (BCM)</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 1cm;"> <p class="ListParagraph1">Other Key Features</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 1cm;"> <p class="MsoNormal">4.5V to 36V Input Voltage Range</p> <p class="MsoNormal">Support duty up to 95%</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 34.94%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">Protection</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 65.06%; height: 1cm;"> <p class="ListParagraph1CxSpMiddle">Cycle-by-Cycle Over Current Protection</p> <p class="ListParagraph1CxSpLast">Thermal Shutdown</p> </td> </tr> </tbody> </table> </div>

5. Bench Test Setup Conditions

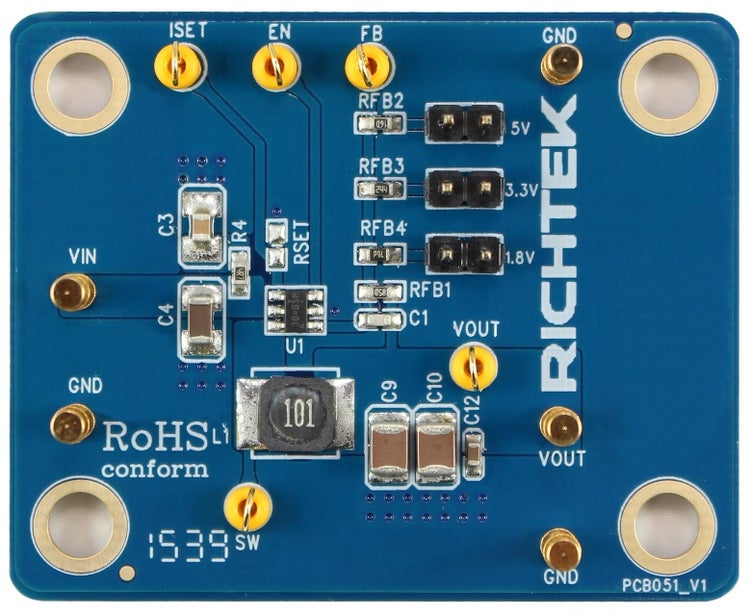

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image001_en.jpg" class="fancybox"><img width="340" height="279" id="圖片 3" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image001_en.jpg" /></a></p> <p class="2">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a></p>

6. Test Points

<p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div> <table width="680" class="MsoTableLightListAccent2" style="border: currentcolor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 1cm;"> <td style="background: #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 11.94%; height: 1cm;"> <p class="10CxSpFirst">Test point/</p> <p class="10CxSpMiddle">Pin name</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 1cm;"> <p class="10CxSpMiddle">Signal</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 1cm;"> <p class="10CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 11.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input voltage range = 4.5V to 36V</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 11.94%; height: 1cm;"> <p class="ListParagraph1CxSpFirst">VOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 1cm;"> <p class="ListParagraph1CxSpMiddle">Output voltage </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 1cm;"> <p class="ListParagraph1CxSpMiddle">Default output voltage : 1.8V, 3.3V, 5V Optional</p> <p class="ListParagraph1CxSpLast">Output voltage range = 0.8V to 5V </p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 11.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">SW</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Switching node test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 17pt;"> <p class="ListParagraph1CxSpLast">SW waveform</p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 11.94%; height: 39.7pt;"> <p class="ListParagraph1CxSpFirst">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 39.7pt;"> <p class="ListParagraph1CxSpMiddle">Enable test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 39.7pt;"> <p class="ListParagraph1CxSpLast">Driving the EN pin high (>1.4V) will turn on the device again. Leaving the EN pin floating will pull the EN pin up to 2V internally and enable RT6208.</p> </td> </tr> <tr style="height: 39.7pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 11.94%; height: 39.7pt;"> <p class="ListParagraph1CxSpFirst">ISET</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 39.7pt;"> <p class="ListParagraph1CxSpMiddle">High-Side Peak Current Set Pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 39.7pt;"> <p class="ListParagraph1CxSpLast">A resistor from this pin to GND sets the high-side peak current limit. Leave floating for the maximum peak current, 225mA. Short this pin to GND for the minimum peak current, 50mA. </p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 11.94%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 25.4%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 62.66%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground</p> </td> </tr> </tbody> </table> </div>

7. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Apply a 12V nominal input power supply (4.5V < V_IN < 36V) to the VIN and GND terminals.</p> <p class="MsoListParagraph">2. There are 2-pin header 1.8V, 3.3V and 5V for output voltage. To use a jumper choose the output voltage level.</p> <p class="MsoListParagraph">3. Verify the output voltage (approximately 1.8V, 3.3, 5.0V) between VOUT and GND.</p> <p class="MsoListParagraph">4. Connect an external load up to 100mA to the VOUT and GND terminals and verify the output voltage and current. </p>

8. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <p class="21"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image002_en.jpg" class="fancybox"><img width="680" height="266" id="圖片 7" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image002_en.jpg" /></a></p>

9. Bill of Materials

<div> <table width="680" class="MsoNormalTable" style="border: currentcolor; width: 510.2pt; border-collapse: collapse;" border="1" cellspacing="0" cellpadding="0"> <tbody> <tr style="height: 17pt;"> <td style="background: #009eb8; padding: 0cm 1.4pt; border: 1pt solid #009eb8; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Qty</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">Part Number</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Description</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Package</p> </td> <td style="background: #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">C1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">0603NPO100pF+-5%50V</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">100pF/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">C3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">C2012X7R1H224KT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0.22µF/1206/50V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">C4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">GRM319R61H475KA12</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4.7µF/1206/50V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-1206</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">muRata</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">C9, C10</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">CL31A226KAHNNE</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">22µF/1206/25V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SAMSUNG</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">C12</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">0603B104K500CT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">0.1µF/0603/50V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">Golden Pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">SIP-1P-GP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">VIN, GND, VOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SIP-1P-GP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">J1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1.8V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SIP-2P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">J2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">3.3V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SIP-2P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">J3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">5V </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SIP-2P</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">744052101</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">100µH </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">5.8x5.8mm</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Wurth<br /> Elektronik</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">RFB1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">0603 750K 1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">750k/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">RFB2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">0603 143K 1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">143k/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">RFB3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">CR0603F240KP05</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">240k/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">EVER OHMS</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">RFB4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">0603T-1-604K</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">604k/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">RSET</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">NC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">OPTION/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">R4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">0603 4R70 1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4.7R/0603 </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">Test Pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">EN, SW, FB, VOUT, ISET</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">sip-1p-tp</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 76.45pt; height: 17pt;"> <p class="MsoNormal">U1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 31.05pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 133.5pt; height: 17pt;"> <p class="MsoNormal">RT6208GE</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 120.5pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">DC/DC Converter</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 77.95pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">SOT-23-6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 70.75pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Richtek</p> </td> </tr> </tbody> </table> </div>

10. EVB Layout

<p class="23CxSpFirst"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image003_en.jpg" class="fancybox"><img width="453" height="365" id="圖片 2" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image003_en.jpg" /></a></p> <p class="23CxSpMiddle">Top View</p> <p class="23CxSpMiddle"><a href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image004_en.jpg" class="fancybox"><img width="453" height="364" id="圖片 4" style="border-width: 0px; border-style: solid;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt6208ge/html-images/image004_en.jpg" /></a></p> <p class="23CxSpLast">Bottom View</p>
