1. Purpose

<p class="MsoNormal">The RT7272A is a high-efficiency current mode synchronous step-down regulator that can deliver up to 3A output current from a wide input voltage range of 4.5V to 36V. This document explains the function and use of the RT7272A evaluation board (EVB) and provides information to enable operation and modification of the evaluation board and circuit to suit individual requirements. </p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT7272A is a high efficiency, current mode synchronous step-down DC/DC converter that can deliver up to 3A output current over a wide input voltage range from 4.5V to 36V. The device integrates a 150mΩ high side and an 80mΩ low side MOSFET to achieve high conversion efficiency up to 95%. The current mode control architecture supports fast transient response and uses a simple compensation circuit.</p> <p class="bady">A cycle-by-cycle current limit function provides protection against a shorted output and an internal soft-start eliminates input surge current during start-up. The RT7272A provides complete protection functions such as input under voltage lockout, output under voltage protection, over current protection and thermal shutdown. </p> <p class="bady">The RT7272A is available in the thermal enhanced SOP-8 (Exposed Pad) package.</p> <h3>Product Feature</h3> <ul> <li style="color: rgb(35, 31, 32);">4.5V to 36V Input Voltage Range</li> <li style="color: rgb(35, 31, 32);">3A Output Current</li> <li style="color: rgb(35, 31, 32);">Internal N-MOSFETs</li> <li style="color: rgb(35, 31, 32);">Current Mode Control</li> <li style="color: rgb(35, 31, 32);">Fixed Frequency Operation : 500kHz</li> <li style="color: rgb(35, 31, 32);">Adjustable Output Voltage from 0.8V to 30V</li> <li style="color: rgb(35, 31, 32);">High Efficiency Up to 95%</li> <li style="color: rgb(35, 31, 32);">Stable with Low ESR Ceramic Output Capacitors</li> <li style="color: rgb(35, 31, 32);">Cycle-by-Cycle Current Limit</li> <li style="color: rgb(35, 31, 32);">Adjustable Current Limit</li> </ul>

3. Key Performance Summary Table

<div> <table class="MsoNormalTable" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" cellpadding="0" cellspacing="0" border="1" width="680"> <tbody> <tr style="height: 17pt;"> <td style="background: rgb(0, 158, 184); padding: 0cm 5.4pt; border: 1pt solid rgb(0, 158, 184); width: 164.25pt; height: 17pt;"> <p class="ListParagraph1CxSpFirst">Key features</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">Evaluation board number: PCB001_V1</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1CxSpFirst">Default Input Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="1CxSpLast">12V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1CxSpFirst">Max Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="1CxSpLast">3A (OCP level set to 5.5A typical by R_LIM = 137kΩ)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1CxSpFirst">Default Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="1CxSpLast">3.3V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1CxSpFirst">Default Marking & Package Type</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="1CxSpLast">RT7272AGSP, SOP-8 (Exposed Pad)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1CxSpFirst">Operation Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="1CxSpLast">Steady 500kHz at all load currents</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1">Other Key Features</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="MsoNormal">4.5V to 36V Wide Input Voltage Range</p> <p class="MsoNormal">Adjustable Current Limit 2A to 6A</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 164.25pt; height: 17pt;"> <p class="1">Protection</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 305.85pt; height: 17pt;"> <p class="MsoNormal">Over Current Protection &</p> <p class="MsoNormal">Output Under-Voltage-Protection (hiccup mode)</p> <p class="MsoNormal">Input Under-voltage Lock-out</p> <p class="MsoNormal">Thermal Shutdown</p> </td> </tr> </tbody> </table> </div>

4. Bench Test Setup Conditions

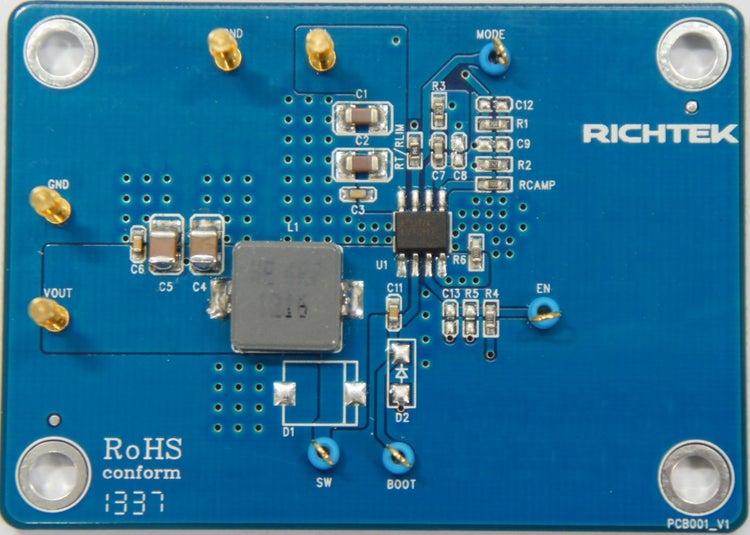

<h3>Headers Description and Placement</h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image001_en.jpg"><img id="圖片 1" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image001_en.jpg" height="302" width="424" /></a></p> <p class="1">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <span style="text-decoration: underline;">evb_service@richtek.com</span>.</p> <h3>Test Points</h3> <p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div> <table class="MsoNormalTable" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" cellpadding="0" cellspacing="0" border="1" width="680"> <tbody> <tr style="height: 17pt;"> <td style="background: rgb(0, 158, 184); padding: 0cm 5.4pt; border: 1pt solid rgb(0, 158, 184); width: 2cm; height: 17pt;"> <p class="1CxSpFirst">Test point/</p> <p class="1CxSpMiddle">Pin name</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="1CxSpMiddle">Signal</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="1CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input voltage range= 4.5V to 36V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Output voltage </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Default output voltage = 3.3V</p> <p class="ListParagraph1CxSpMiddle">Output voltage range= 0.8V to 30V </p> <p class="ListParagraph1CxSpLast">(see ‘’ Output Voltage Setting’’ section for changing output voltage level)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">SW</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Switching node test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">SW waveform</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">EN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Enable test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">Enable signal. EN is automatically pulled high (by R4) to enable operation. Connect EN low to disable operation.</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">BOOT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Boot strap supply test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">Floating supply voltage for the high-side N-MOSFET switch</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">MODE</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">RLIM test point</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">Current limit setting point</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 5.4pt; width: 2cm; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 120.5pt; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 5.4pt; width: 304.75pt; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground</p> </td> </tr> </tbody> </table> </div>

5. Power-up & Measurement Procedure

<p class="ListParagraph1CxSpFirst">1.Apply a 12V nominal input power supply (4.5V < V_IN < 36V) to the VIN and GND terminals.</p> <p class="ListParagraph1CxSpMiddle">2.The EN voltage is pulled to logic high by R4 (100kΩ to VIN) to enable operation. Drive EN high (>2.0V) to enable operation or low (<0.4V) to disable operation.</p> <p class="ListParagraph1CxSpMiddle">3.Verify the output voltage (approximately 3.3V) between VOUT and GND.</p> <p class="ListParagraph1CxSpLast">4.Connect an external load up to 3A to the VOUT and GND terminals and verify the output voltage and current. </p> <h3>Output Voltage Setting</h3> <p class="MsoNormal">Set the output voltage with the resistive divider (R1, R2) between VOUT and GND with the midpoint connected to FB through RCAMP. The output is set by the following formula:</p> <p class="MsoNormal"><a class="fancybox" href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG7272AGSP/EN/Version1/image002.gif"></a><a class="fancybox" href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG7243GQW/EN/Version1/image004.gif"><img id="圖片 2" style="border-width: 0px; border-style: solid; width: 162px; height: 43px;" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image004_en.gif" height="43" width="162" /></a></p> <p class="MsoNormal">The installed V_OUT capacitors (C4, C5) are 22μF, 16V X5R ceramic types. Do not exceed their operating voltage range and consider their voltage coefficient (capacitance vs. bias voltage) and ensure that the capacitance is sufficient to maintain stability and provide sufficient transient response for your application. This can be verified by checking the output transient response as described in the RT7272A IC datasheet.</p>

6. Schematic, Bill of Materials and Board Layout

<h3>EVB Schematic Diagram</h3> <h3><a name="_Toc381976803"></a><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image004_en.gif"><img id="圖片 2" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image004_en.gif" height="331" width="680" /></a></h3> <p class="MsoNormal">C1, C2: 10μF/50V/X5R, 1206, TDK C3216X5R1H106K</p> <p class="MsoNormal">C4, C5: 22μF/16V/X5R, 1210, Murata GRM32ER61C226K</p> <p class="MsoNormal">L1: 4.7μH WE74437368047, DCR=15mΩ </p> <h3>Bill of Materials</h3> <table class="MsoNormalTable" style="border: currentColor; width: 510.2pt; border-collapse: collapse;" cellpadding="0" cellspacing="0" border="1" width="680"> <tbody> <tr style="height: 17pt;"> <td style="background: rgb(0, 158, 184); padding: 0cm 1.4pt; border: 1pt solid rgb(0, 158, 184); width: 13%; height: 17pt;"> <p class="MsoNormal">Reference</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">Qty</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> <p class="MsoNormal">Part number</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">Description</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">Package</p> </td> <td style="background: rgb(0, 158, 184); border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: rgb(0, 158, 184) rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">U1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> <p class="MsoNormal">RT7272AGSP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">DC/DC Converter</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">PSOP-8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> <p class="MsoNormal">Richtek</p> </td> </tr> <tr style="height: 34.5pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 34.5pt;"> <p class="MsoNormal">C1, C2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 34.5pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 34.5pt;"> <p class="MsoNormal">C3216X5R1H106K160AB</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 34.5pt;"> <p class="MsoNormal">10μF/±10%/50V/X5R</p> <p class="MsoNormal">Ceramic Capacitor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 34.5pt;"> <p class="MsoNormal">1206</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 34.5pt;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 34.5pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 34.5pt;"> <p class="MsoNormal">C4, C5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 34.5pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 34.5pt;"> <p class="MsoNormal">GRM32ER61C226KE20#</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 34.5pt;"> <p class="MsoNormal">22μF/±10%/16V/X5R</p> <p class="MsoNormal">Ceramic Capacitor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 34.5pt;"> <p class="MsoNormal">1210</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 34.5pt;"> <p class="MsoNormal">Murata</p> </td> </tr> <tr style="height: 34.5pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 34.5pt;"> <p class="MsoNormal">C7</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 34.5pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 34.5pt;"> <p class="MsoNormal">0603B272K500</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 34.5pt;"> <p class="MsoNormal">2.7nF/±10%/50V/X7R</p> <p class="MsoNormal">Ceramic Capacitor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 34.5pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 34.5pt;"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height: 34.5pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 34.5pt;"> <p class="MsoNormal">C3, C6, C11</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 34.5pt;"> <p class="MsoNormal">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 34.5pt;"> <p class="MsoNormal">C1608X7R1H104K080AA</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 34.5pt;"> <p class="MsoNormal">0.1μF/±10%/50V/X7R</p> <p class="MsoNormal">Ceramic Capacitor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 34.5pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 34.5pt;"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">C8,C9,C12,C13</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">0</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">Not Installed</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"></td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> <p class="MsoNormal">WE74437368047</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">4.7μH/19A/±20%, <br /> DCR=15mΩ, Inductor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">11mmx10mmx3.8mm</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> <p class="MsoNormal">WE</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">R1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">75kΩ/±1%, Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">R2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">24kΩ/±1%, Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">R3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">13kΩ/±1%, Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">R4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">100kΩ/±1%, Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">R5, D1, D2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">0</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">Not Installed</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"></td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">R6, RCAMP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">0Ω, Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">RLIM</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">137kΩ/±1%, Resistor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> <p class="MsoNormal">0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">TP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">Test Pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184); padding: 0cm 1.4pt; width: 13%; height: 17pt;"> <p class="MsoNormal">GP</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 8.4%; height: 17pt;"> <p class="MsoNormal">4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 21.7%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 25.7%; height: 17pt;"> <p class="MsoNormal">Golden Pin</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 17.52%; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentColor rgb(0, 158, 184) rgb(0, 158, 184) currentColor; padding: 0cm 1.4pt; width: 13.68%; height: 17pt;"> </td> </tr> </tbody> </table>

7. EVB Layout

<p class="1CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image005_en.gif"><img id="圖片 5" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image005_en.gif" height="354" width="495" /></a></p> <p class="1CxSpMiddle">Top View (1^stlayer)</p> <p class="1CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image006_en.gif"><img id="圖片 6" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image006_en.gif" height="354" width="495" /></a></p> <p class="1CxSpLast">Bottom View (4^thLayer)</p> <p class="1CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image007_en.gif"><img id="圖片 7" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image007_en.gif" height="303" width="431" /></a></p> <p class="1CxSpMiddle">Component Placement Guide—Component Side (1^stlayer)</p> <p class="1CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image008_en.gif"><img id="圖片 8" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image008_en.gif" height="309" width="430" /></a></p> <p class="1CxSpMiddle">PCB Layout—Component Side (1^stLayer)</p> <p class="1CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image009_en.gif"><img id="圖片 9" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image009_en.gif" height="295" width="413" /></a></p> <p class="1CxSpMiddle">PCB Layout—Inner Side (2^nd Layer)</p> <p class="1CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image010_en.gif"><img id="圖片 10" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image010_en.gif" height="295" width="413" /></a></p> <p class="1CxSpMiddle">PCB Layout—Inner Side (3^rd Layer)</p> <p class="1CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image011_en.gif"><img id="圖片 11" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image011_en.gif" height="295" width="417" /></a></p> <p class="1CxSpMiddle">Component Placement Guide—Bottom Side (4^th Layer)</p> <p class="1CxSpMiddle"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image012_en.gif"><img id="圖片 12" alt="Technical Document Image Preview" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt7272agsp/html-images/image012_en.gif" height="295" width="411" /></a></p> <p class="1CxSpMiddle">PCB Layout—Bottom Side (4^thlayer)</p>
