RT8498 为一款电流模式 LED 驱动器，支持 3V 至 18V 的宽输入电压范围，输出电压最高可达 18V。内置 350kHz 开关频率，可减小外部 PWM 电感及输入／输出电容尺寸。采用 100mV 电流检测控制，可实现高效率运行。LED 调光可通过模拟信号或 PWM 信号控制。RT8498 内置软启动功能，可避免启动时浪涌电流，并具备过温保护功能，以防止器件过热。RT8498 采用 SOT-23-6 封装。

EVB_RT8498GE

width

fixed-width

basicInfoImageSection

anchor

overviewSection

i18n(anchor-tab.overview-section.title)

overviewSectionAnchorTab

designResourceSection

i18n(anchor-tab.design-resource-section.title)

designResourceSectionAnchorTab

relatedProductSection

i18n(anchor-tab.related-product-section.title)

relatedProductSectionAnchorTab

orderingInformationSection

i18n(anchor-tab.ordering-information-section.title)

orderingInformationSectionAnchorTab

width

full-width

anchorSection

overview

1. Purpose

The RT8498 is specifically designed to be operated in Buck, Boost and Buck-Boost converter applications. This document explains the function and use of the RT8498 evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.

2. Introduction

<h3>General Product Information</h3> The RT8498 is a current-mode LED driver supporting wide input voltage range from 3V to 18V and output voltage up to 18V. With internal 350kHz operating frequency, the size of the external PWM inductor and input/output capacitors can be minimized. High efficiency is achieved by a 100mV current sensing control. LED dimming control can be done from either analog or PWM signal. The RT8498 provides an internal soft-start function to avoid inrush current and thermal shutdown to prevent the device from overheat. The RT8498 is available in the SOT-23-6 package. <h3> Product Feature</h3> <ul> <li>High Voltage : VIN Up to 18V, VOUT Up to 18V </li> <li>Built-In 2A Power Switch </li> <li>Current-Mode PWM Control </li> <li>350kHz Fixed Switching Frequency </li> <li>Analog, PWM Digital or PWM Converting to Analog with One External Capacitor </li> <li>Internal Soft-Start to Avoid Inrush Current </li> <li>Under-Voltage Lockout </li> <li>Internal Over Voltage Protection to Limit Output Voltage </li> <li>Cycle-by Cycle Current Limit </li> <li>Thermal Shutdown </li> </ul>

3. Key Performance Summary Table

<div> <table border="1" cellpadding="0" cellspacing="0" class="MsoTableLightListAccent2" style="width: 510.2pt; border-collapse: collapse; border: none" width="680"> <tr style="height: 17.0pt"> <td style="width: 34.94%; border: solid #009EB8 1.0pt; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="34%"> Key Features </td> <td style="width: 65.06%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="65%"> Evaluation Board Number: PCB082_V1 </td> </tr> <tr style="height: 17.0pt"> <td style="width: 34.94%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="34%"> Default Input Voltage </td> <td style="width: 65.06%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="65%"> 4.5V to 18V </td> </tr> <tr style="height: 17.0pt"> <td style="width: 34.94%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="34%"> Max Output Current </td> <td style="width: 65.06%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="65%"> 1A </td> </tr> <tr style="height: 17.0pt"> <td style="width: 34.94%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="34%"> Default Output Voltage </td> <td style="width: 65.06%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="65%"> 3.0V </td> </tr> <tr style="height: 17.0pt"> <td style="width: 34.94%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="34%"> Default Marking & Package Type </td> <td style="width: 65.06%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="65%"> RT8498GE, SOT-23-6 </td> </tr> <tr style="height: 17.0pt"> <td style="width: 34.94%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="34%"> Operation Frequency </td> <td style="width: 65.06%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="65%"> Steady 350kHz at all loads </td> </tr> </table> </div>

4. Bench Test Setup Conditions

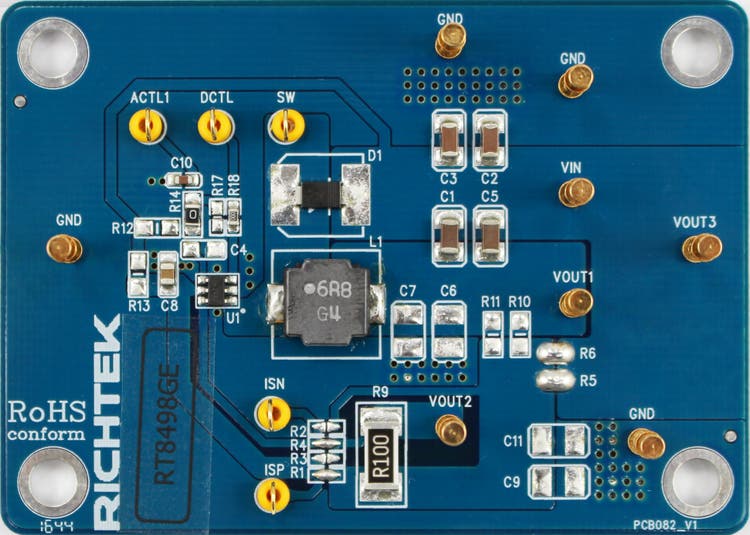

<h3>Headers Description and Placement</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image001_en.jpg"> <img id="圖片 3" alt="Technical Document Image Preview" height="302" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image001_en.jpg" width="424" /></a> Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a class="link" href="mailto:evb_service@richtek.com">evb_service@richtek.com</a>. <h3> Test Points</h3> The EVB is provided with the test points and pin names listed in the table below. <table border="1" cellpadding="0" cellspacing="0" class="MsoTableLightListAccent2" style="width: 510.2pt; border-collapse: collapse; border: none" width="680"> <tr style="height: 1.0cm"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="13%"> Test point/ Pin name </td> <td style="width: 22.24%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="22%"> Signal </td> <td style="width: 64.46%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="64%"> Comment (expected waveforms or voltage levels on test points) </td> </tr> <tr style="height: 17.0pt"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="13%"> SW </td> <td style="width: 22.24%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="22%"> Switch node test point </td> <td style="width: 64.46%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="64%"> Switch node of the PWM converter. </td> </tr> <tr style="height: 17.0pt"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="13%"> GND </td> <td style="width: 22.24%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="22%"> Ground </td> <td style="width: 64.46%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="64%"> Ground. </td> </tr> <tr style="height: 17.0pt"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="13%"> DCTL </td> <td style="width: 22.24%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="22%"> DCTL Input Voltage </td> <td style="width: 64.46%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="64%"> Digital dimming control input. </td> </tr> <tr style="height: 1.0cm"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="13%"> ACTL </td> <td style="width: 22.24%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="22%"> ACTL Input Voltage </td> <td style="width: 64.46%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="64%"> Analog dimming control input. Effective programming range is 0.65V to 1.2V. </td> </tr> <tr style="height: 1.0cm"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="13%"> VCC </td> <td style="width: 22.24%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="22%"> Supply Voltage Input </td> <td style="width: 64.46%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 1.0cm" width="64%"> Supply voltage input. For good bypass, connect a low ESR capacitor between this pin and GND. </td> </tr> <tr style="height: 17.0pt"> <td style="width: 13.3%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="13%"> ISN </td> <td style="width: 22.24%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="22%"> Current sense input </td> <td style="width: 64.46%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="64%"> Current sense input. Voltage threshold between VCC and ISN is 100mV. </td> </tr> </table> <h3> Power-up & Measurement Procedure</h3> 1. Connect input power (4.5V < VIN < 18V) and input ground to VIN and GND test pins respectively. 2. Connect positive end and negative terminals of load to VOUT2 and VOUT1 test pins respectively.. 3. Verify the output voltage/output current (approximately 3.0V/1A) between VOUT2 and VOUT1. 4. VIN = 12V, VOUT = 3V, IOUT = 1A (Buck) , LED+ = VOUT2, LED- = VOUT1, LOAD = 1LEDs or Electronic Load CV mode measure check SW pin freq = 350kHZ , ISP-ISN Threshold = 100mV <h3> LED Current Setting</h3> The LED current can be calculated by the following equation : <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image002_en.jpg"> <img id="圖片 4" alt="Technical Document Image Preview" border="0" height="40" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image002_en.jpg" width="173" /></a> where (VVCC - VISN) is the voltage between the VCC and ISN pins (100mV typ. if ACTL dimming is not applied) and the RSENSE is the resister between the VCC and ISN pins.

5. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image003_en.jpg"> <img id="圖片 1" alt="Technical Document Image Preview" border="0" height="347" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image003_en.jpg" width="680" /></a> <h3> Bill of Materials</h3> <table border="1" cellpadding="0" cellspacing="0" class="MsoTableLightListAccent2" style="border-collapse: collapse; border: none" width="680"> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> Reference </td> <td style="width: 5.62%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> Qty </td> <td style="width: 24.98%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> Part number </td> <td style="width: 20.58%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> Description </td> <td style="width: 16.18%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> Package </td> <td style="width: 14.4%; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> Manufacturer </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> U1 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> RT8498GE </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> SOT-23-6 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> Richtek </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C1, C5 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> GRM31CR71H475KA12L </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 4.7µF/50V/X7R/1206 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-1210 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> muRata </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C2, C3 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> C3216X5R1H106K160AB </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 10µF/50V/X7R/1206 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-1210 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> TDK </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C4 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> NC </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-0805 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C6, C7 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> NC </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-1210 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C8 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> C2012X7R1H105KT </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 1µF/50V/X7R/0805 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-0805 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> TDK </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C9, C11 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> NC </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-1210 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> TDK </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> C10 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> C1608X7R1C474K000N </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 0.47µF/16V/X7R/0603 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> C-0603 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> TDK </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> D1 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> PMEG 4020 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> D-CR-73 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> NXP </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> L1 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> NRS8040T6R8NJGJ </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 6.8µH </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> L-SU1028 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> TAIYO YUDEN </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R1, R4 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> Short </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> CP-0603 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R2, R3 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> NC </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> CP-0603 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R5, R6 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 2 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> SHORT </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> CP-0805C </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R9 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> 2512T-1-R100 </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 100mohm </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> RC-1A </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> RALEC </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R10, R11, R12, R13 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 4 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> NC </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> R-0805 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R14 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> RTT05000JTP </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 0R/0805 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> R-0805 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> RALEC </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R17 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> NC </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> R-0603 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> </td> </tr> <tr style="height: 17.0pt"> <td style="width: 18.24%; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="18%"> R18 </td> <td style="width: 5.62%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="5%"> 1 </td> <td style="width: 24.98%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="24%"> WR06X000 PTL </td> <td style="width: 20.58%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="20%"> 0R/0603 </td> <td style="width: 16.18%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="16%"> R-0603 </td> <td style="width: 14.4%; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" width="14%"> WALSIN </td> </tr> </table> <h3> Efficiency:</h3> <table border="1" cellpadding="0" cellspacing="0" class="MsoNormalTable" style="width: 510.2pt; border-collapse: collapse; border: none" width="680"> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> VIN (V) </td> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> IIN (A) </td> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> VOUT (V) </td> <td nowrap style="width: 50.35pt; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> IOUT (A) </td> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> Eff. (%) </td> <td nowrap style="width: 72.85pt; border: solid #009EB8 1.0pt; border-left: none; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> ISP-ISN (mV) </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 4.5 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 0.834 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 3.405 </td> <td nowrap style="width: 50.35pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> 0.974 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 88.369 </td> <td nowrap style="width: 72.85pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> 97.9 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 7 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 0.538 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 3.395 </td> <td nowrap style="width: 50.35pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> 0.978 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 88.165 </td> <td nowrap style="width: 72.85pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> 98.3 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 10 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 0.379 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 3.382 </td> <td nowrap style="width: 50.35pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> 0.974 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 86.915 </td> <td nowrap style="width: 72.85pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> 97.9 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 12 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 0.317 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 3.372 </td> <td nowrap style="width: 50.35pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> 0.972 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 86.162 </td> <td nowrap style="width: 72.85pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> 97.7 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 15 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 0.257 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 3.369 </td> <td nowrap style="width: 50.35pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> 0.97 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 84.771 </td> <td nowrap style="width: 72.85pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> 97.6 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="width: 48.0pt; border: solid #009EB8 1.0pt; border-top: none; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 18 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 0.216 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 3.368 </td> <td nowrap style="width: 50.35pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="67"> 0.966 </td> <td nowrap style="width: 48.0pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="64"> 83.68 </td> <td nowrap style="width: 72.85pt; border-top: none; border-left: none; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt" width="97"> 97.3 </td> </tr> </table> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image004_en.png"> <img id="圖片 5" alt="Technical Document Image Preview" border="0" height="277" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image004_en.png" width="328" /></a> <h3> Line regulation:</h3> <div class="tb-system"> <table border="0" cellpadding="0" cellspacing="0" class="MsoTableGrid" style="border-collapse: collapse; border: none"> <tr style="height: 152.05pt"> <td style="width: 257.4pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 152.05pt" valign="top" width="343"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image005_en.png"> <img id="圖片 10" alt="Technical Document Image Preview" border="0" height="277" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image005_en.png" width="328" /></a> </td> <td style="width: 263.6pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 152.05pt" valign="top" width="351"> <table class="MsoNormalTable" style="margin-left: 1.65pt; border-collapse: collapse; border: medium none; margin-top: 48px;" border="1" cellpadding="0" cellspacing="0"> <tr style="height: 17.0pt"> <td nowrap style="width: 39.15pt; border: solid #009EB8 1.0pt; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center;" width="52"> VIN (V) </td> <td nowrap style="border-right: 1.0pt solid #009EB8; border-top: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 44.7pt; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium;" width="60"> IOUT (A) </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 4.5 </td> <td nowrap style="width: 44.7pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="60"> 995.2 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 7 </td> <td nowrap style="width: 44.7pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="60"> 986.1 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 10 </td> <td nowrap style="width: 44.7pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="60"> 981.8 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 12 </td> <td nowrap style="width: 44.7pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="60"> 981.5 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 15 </td> <td nowrap style="width: 44.7pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="60"> 979.1 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 18 </td> <td nowrap style="width: 44.7pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="60"> 976.8 </td> </tr> </table> </td> </tr> </table></div> <h3> Load regulation:</h3> <div class="tb-system"> <table border="0" cellpadding="0" cellspacing="0" class="MsoTableGrid" style="border-collapse: collapse; border: none" width="680"> <tr style="height: 17.0pt"> <td style="width: 258.1pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" valign="top" width="344"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image006_en.png"> <img id="圖片 16" alt="Technical Document Image Preview" border="0" height="276" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image006_en.png" width="327" /></a> </td> <td style="width: 252.1pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 17.0pt" valign="top" width="336"> <table class="MsoNormalTable" style="margin-left: 1.65pt; border-collapse: collapse; border: medium none; margin-top: 48px;" border="1" cellpadding="0" cellspacing="0"> <tr style="height: 17.0pt"> <td nowrap style="width: 39.15pt; border: solid #009EB8 1.0pt; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center;" width="52"> LEDs </td> <td style="border-right: 1.0pt solid #009EB8; border-top: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 48.05pt; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium;" width="64"> VOUT (V) </td> <td nowrap style="border-right: 1.0pt solid #009EB8; border-top: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 57.8pt; background: #009EB8; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium;" width="77"> IOUT (mA) </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 5LED </td> <td style="width: 48.05pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="64"> 16.21 </td> <td nowrap style="width: 57.8pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="77"> 974.8 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 4LED </td> <td style="width: 48.05pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="64"> 12.88 </td> <td nowrap style="width: 57.8pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="77"> 977.5 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 3LED </td> <td style="width: 48.05pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="64"> 9.38 </td> <td nowrap style="width: 57.8pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="77"> 978.1 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 2LED </td> <td style="width: 48.05pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="64"> 6.46 </td> <td nowrap style="width: 57.8pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="77"> 980.5 </td> </tr> <tr style="height: 17.0pt"> <td nowrap style="border-left: 1.0pt solid #009EB8; border-right: 1.0pt solid #009EB8; border-bottom: 1.0pt solid #009EB8; width: 39.15pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="52"> 1LED </td> <td style="width: 48.05pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="64"> 3.38 </td> <td nowrap style="width: 57.8pt; border-bottom: solid #009EB8 1.0pt; border-right: solid #009EB8 1.0pt; padding: 0cm 1.4pt 0cm 1.4pt; height: 17.0pt; text-align: center; border-left-style: none; border-left-color: inherit; border-left-width: medium; border-top-style: none; border-top-color: inherit; border-top-width: medium;" width="77"> 983.8 </td> </tr> </table> </td> </tr> </table></div> <h3> Waveform:</h3> <div class="tb-system"> <table border="0" cellpadding="0" cellspacing="0" class="MsoTableGrid" style="border-collapse: collapse; border: none"> <tr style="height: 14.45pt"> <td colspan="2" style="width: 513.0pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 14.45pt" valign="top" width="684"> Test condition:VIN = 10V, VOUT = 3V, IOUT = 1A </td> </tr> <tr style="height: 20.6pt"> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 20.6pt" valign="top" width="342"> CH1 = SW, CH2 = VOUT, CH3 = VIN, CH4 = IL </td> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 20.6pt" valign="top" width="342"> CH1 = SW, CH2 = VOUT, CH3 = VIN, CH4 = IOUT </td> </tr> <tr> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt" valign="top" width="342"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image007_en.jpg"> <img id="圖片 11" alt="Technical Document Image Preview" border="0" height="275" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image007_en.jpg" width="321" /></a> </td> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt" valign="top" width="342"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image008_en.jpg"> <img id="圖片 12" alt="Technical Document Image Preview" border="0" height="275" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image008_en.jpg" width="336" /></a> </td> </tr> </table></div> <h3> Analog / PWM Dimming :</h3> <div class="tb-system"> <table border="0" cellpadding="0" cellspacing="0" class="MsoTableGrid" style="border-collapse: collapse; border: none"> <tr style="height: 214.55pt"> <td style="width: 256.95pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 214.55pt" width="343"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image009_en.png"> <img id="圖片 17" alt="Technical Document Image Preview" border="0" height="277" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image009_en.png" width="328" /></a> </td> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 214.55pt" width="342"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image010_en.png"> <img id="圖片 18" alt="Technical Document Image Preview" border="0" height="276" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image010_en.png" width="327" /></a> </td> </tr> <tr style="height: 217.1pt"> <td style="width: 256.95pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 217.1pt" width="343"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image011_en.png"> <img id="圖片 19" alt="Technical Document Image Preview" border="0" height="277" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image011_en.png" width="328" /></a> </td> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 217.1pt" width="342"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image012_en.png"> <img id="圖片 20" alt="Technical Document Image Preview" border="0" height="276" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image012_en.png" width="327" /></a> </td> </tr> <tr style="height: 204.8pt"> <td style="width: 256.95pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 204.8pt" width="343"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image013_en.png"> <img id="圖片 27" alt="Technical Document Image Preview" border="0" height="277" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image013_en.png" width="328" /></a> </td> <td style="width: 256.5pt; padding: 0cm 5.4pt 0cm 5.4pt; height: 204.8pt" width="342"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image014_en.png"> <img id="圖片 28" alt="Technical Document Image Preview" border="0" height="276" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image014_en.png" width="327" /></a> </td> </tr> </table></div> <h3>PCB Layout</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image015_en.jpg"> <img id="圖片 7" alt="Technical Document Image Preview" border="0" height="302" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image015_en.jpg" width="423" /></a> Top View (1st layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image016_en.jpg"> <img id="圖片 8" alt="Technical Document Image Preview" border="0" height="302" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8498ge/html-images/image016_en.jpg" width="423" /></a> Bottom View (4th Layer)
