本开发板展示 RT8575GQW 的应用设计，可支持 12V 至 24V 的宽输入电压范围，在 280kHz 开关频率下提供 120mA LED 驱动电流。调光范围支持 120Hz 至 1kHz 的输入 PWM 信号，适用于各类 LED 照明系统。RT8575GQW 提供完整保护功能，包括输入欠压锁定、Boost 输出过压保护、Boost 过电流保护、LED 开路保护、LED 短路保护及过温保护。逐周期电流限制可提供输出短路保护，软启动可降低启动时的输入浪涌电流。

EVB_RT8575GQW

width

fixed-width

basicInfoImageSection

anchor

overviewSection

i18n(anchor-tab.overview-section.title)

overviewSectionAnchorTab

designResourceSection

i18n(anchor-tab.design-resource-section.title)

designResourceSectionAnchorTab

relatedProductSection

i18n(anchor-tab.related-product-section.title)

relatedProductSectionAnchorTab

orderingInformationSection

i18n(anchor-tab.ordering-information-section.title)

orderingInformationSectionAnchorTab

width

full-width

anchorSection

overview

1. General Description

The Evaluation Board demonstrates the RT8575GQW’s capability to be designed for a wide input range from a 12V to 24V and provide 120mA LED current at 280kHz switching frequency. The dimming range makes it suitable from 120Hz to 1kHz of intput PWM signal for LED systems. The RT8575GQW provides complete protection functions such as input undervoltage lockout, Boost output overvoltage protection, Boost overcurrent protection, opened LED protection, shorted LED protection and thermal shutdown. Cycle-by-cycle current limit provides protection against shorted outputs, and soft-start eliminates input current surge during start-up.

2. Performance Specification Summary

Table 1 shows the summary of the RT8575GQW Evaluation Board performance specificiaiton. The ambient temperature is 25°C. Table 1. RT8575GQW Evaluation Board Performance Specification Summary <div> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Specification </td> <td width="275" style="width:206.6pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Test Conditions </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Min </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Typ </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Max </td> <td style="border:solid #009EB8 1.0pt;border-left:none;background:#009EB8; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Unit </td> </tr> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Input Voltage Range </td> <td width="275" style="width:206.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 12 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 24 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Maximum ILED Current </td> <td width="275" style="width:206.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> RISET = 7.5kΩ </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 120 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> mA </td> </tr> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Boost Output Overvoltage </td> <td width="275" style="width:206.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 51 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> V </td> </tr> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Boost Operation Frequency </td> <td width="275" style="width:206.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> 280 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> kHz </td> </tr> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> LED Current Accuracy </td> <td width="275" style="width:206.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ILED = 120mA, VIN = 12V to 24V </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> <tr style="height:17.0pt"> <td width="217" style="width:162.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> LED Current Matching </td> <td width="275" style="width:206.6pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ILED = 120mA, VIN = 12V to 24V </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> -- </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±1 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> ±3 </td> <td style="border-top:none;border-left:none;border-bottom:solid #009EB8 1.0pt; border-right:solid #009EB8 1.0pt;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> % </td> </tr> </table> </div>

3. Power-up Procedure

<h3>Suggestion Required Equipments</h3> <ul> <li>RT8575GQW Evaluation Board </li> <li>DC power supply capable of at least 30V and 5A</li> <li>LED Load Board</li> <li>Function Generator</li> <li>Oscilloscope</li> </ul>

4. Quick Start Procedures

The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Do not turn on supplies until all connections are made. When measuring the output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip and ground ring directly across the last output capacitor.

5. Proper measurement equipment setup and follow the procedure below.

1) With power off, connect the input power supply to VIN and GND pins. 2) With power off, use jumper to pull high EN pin of J1. 3) With power off, connect the Function Generator to PWM pin, set up frequency range from 120Hz to 1kHz, 100% duty and amplitude does not exceed 5V 4) With power off, connect the LED Load Board to VOUT and LEDx pins. 5) Turn on the power supply at the input. Make sure that the input voltage does not exceeds 24V on the Evaluation Board. 6) Turn on the Function Genetator at the PWM pin. 7) Check LED Load Board brightness. 8) Once the proper output voltage is established, adjust the PWM duty within the operating ranges and observe the output LED brightness, ICHx, efficiency and other performance.

6. Detailed Description of Hardware

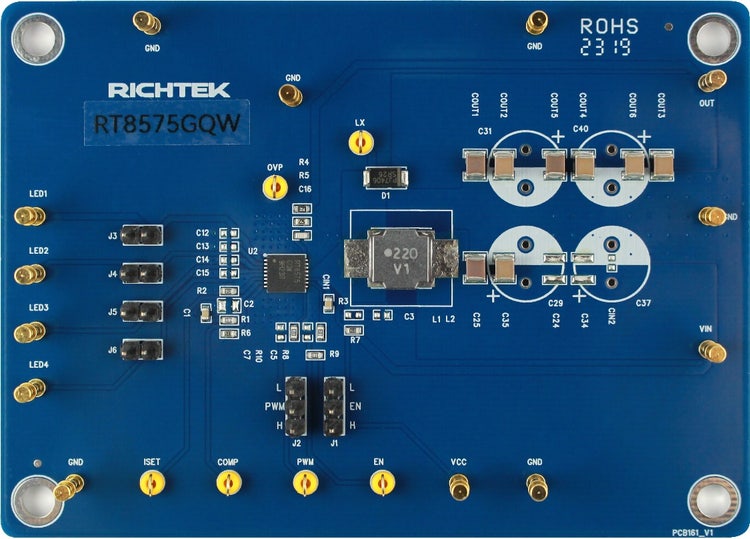

<h3>Headers Description and Placement</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image001_en.jpg"><img width="491" height="353" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image001_en.jpg" alt="一張含有文字, 電路, 電子工程, 電子產品的圖片自動產生的描述" /></a> Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.

7. Test Points

The EVB is provided with the test points and pin names listed in the table below. <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="680" style="width:510.2pt;margin-left:1.85pt;border-collapse:collapse; border:none"> <thead> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Test Point/ Pin Name </td> <td width="85%" style="width:85.36%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> Function </td> </tr> </thead> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VIN </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Input voltage. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> VOUT </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Output voltage. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> GND </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Ground. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> EN </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Enable test point. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> J1 </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> EN jumper. Connect EN to L to disable and H to enable. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> LX </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Switch node test point. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> PWM </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Dimming control input. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> COMP </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Compensation pin for error amplifer. </td> </tr> <tr style="height:1.0cm"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> ISET </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> LED current is set by the value of the resistor RISET connected from the ISET pin to ground. Do not short the ISET pin. VISET is typically 1V. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> OVP </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Overvoltage protection for boost converter. The detecting threshold is 1.2V. </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.64%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> LEDx </td> <td width="85%" style="width:85.36%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> Current Sink for LED. (Connect to GND, if not used.) </td> </tr> </table>

8. Bill of Materials

<div> <table class="TableNormal" border="1" cellspacing="0" cellpadding="0" width="680" style="border-collapse:collapse;border:none"> <thead> <tr style="height:17.0pt"> <td width="680" colspan="7" style="width:510.2pt;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> VIN = 12V, ILED = 120mA, fSW = 280kHz </td> </tr> <tr style="height:17.0pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Reference </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Count </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Part Number </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Value </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Description </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Package </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 0cm 0cm 0cm;height:17.0pt"> Manufacturer </td> </tr> </thead> <tr style="height:17.0pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:17.0pt"> U2 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> RT8575GQW </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> RT8575GQW </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> LED Drver </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:17.0pt"> WDFN-16L 5x5 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:17.0pt"> RICHTEK </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603B104K500CT </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 100nF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic 50V/X7R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> C16 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603N101J500CT </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 100pF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic 50V/X7R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> CIN1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603X105K250CT </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1µF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Capacitor, Ceramic 25V/X5R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:88.4pt"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:88.4pt"> C25, C35, COUT1, COUT2, COUT3, COUT4, COUT5, COUT6, </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:88.4pt"> 8 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:88.4pt"> GRM32ER71H106KA12L </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:88.4pt"> 10µF </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:88.4pt"> Capacitor, Ceramic 50V/X7R </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:88.4pt"> 1210 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:88.4pt"> MURATA </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> D1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> SR26 </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> Schottky Diode 60V/2A </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Schottky Diode 60V/2A </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> SMA/DO-214AC </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> PANJIT </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> L1 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> NRS8040T220MJGJ </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 22µH </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Inductor, Isat = 2.4A, 66mΩ </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 8x8 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> TAIYO YUDEN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R1, R9 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 2 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X000 PTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 0 </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R2 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X7501FTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 7.5k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R4 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> RTT032263FTP </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 226k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> RALEC </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R5 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X5601FTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 5.6k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R6 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X5102FTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 51k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R7 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X10R0FTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 10 </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> <tr style="height:1.0cm"> <td width="71" style="width:52.95pt;border:solid #009EB8 1.0pt;border-top:none; padding:0cm 0cm 0cm 0cm;height:1.0cm"> R8, R10 </td> <td width="38" style="width:28.7pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 2 </td> <td width="161" style="width:120.4pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> WR06X1001FTL </td> <td width="95" style="width:71.4pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> 1k </td> <td width="119" style="width:89.55pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> Resistor, Chip, 1/10W, 1% </td> <td width="104" style="width:77.7pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 0cm 0cm 0cm;height:1.0cm"> 0603 </td> <td width="93" style="width:69.5pt;border-top:none;border-left:none;border-bottom: solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt;padding:0cm 0cm 0cm 0cm; height:1.0cm"> WALSIN </td> </tr> </table> </div>

9. Typical Applications

<h3>EVB Schematic Diagram</h3> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image002_en.png"><img border="0" width="515" height="373" id="Picture 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image002_en.png" alt="Technical Document Image Preview" /></a> 1. The capacitance values of the input and output capacitors will influence the input and output voltage ripple. 2. MLCC capacitors have degrading capacitance at DC bias voltage, and especially smaller size MLCC capacitors will have much lower capacitance.

10. Measurement Result

<table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Efficiency vs. Input Voltage </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> LED Current vs. Input Voltage </td> </tr> <tr style="height:168.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image003_en.jpg"><img border="0" width="292" height="236" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:168.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image004_en.jpg"><img border="0" width="293" height="233" id="圖片 8" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> LED Current vs. Temperature </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> LED Current vs. Dimming Duty </td> </tr> <tr style="height:172.95pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image005_en.jpg"><img border="0" width="292" height="233" id="圖片 10" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:172.95pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image006_en.jpg"><img border="0" width="293" height="233" id="圖片 11" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image006_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power On from PWM </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power Off from PWM </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image007_en.jpg"><img border="0" width="303" height="206" id="圖片 12" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image007_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image008_en.jpg"><img border="0" width="303" height="209" id="圖片 13" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image008_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table> <table class="MsoNormalTable" border="1" cellspacing="0" cellpadding="0" style="margin-left:26.35pt;border-collapse:collapse;border:none"> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power On from EN </td> <td width="307" style="width:230.35pt;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power Off from EN </td> </tr> <tr style="height:184.2pt"> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 1.4pt 0cm 1.4pt;height:184.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image009_en.jpg"><img border="0" width="303" height="206" id="圖片 15" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image009_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 1.4pt 0cm 1.4pt;height:184.2pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image010_en.jpg"><img border="0" width="303" height="206" id="圖片 16" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image010_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power On from VIN </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt"> Power Off from EN </td> </tr> <tr> <td width="306" style="width:229.8pt;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image011_en.jpg"><img border="0" width="292" height="201" id="圖片 17" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image011_en.jpg" alt="Technical Document Image Preview" /></a> </td> <td width="307" style="width:230.35pt;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt"> <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image012_en.jpg"><img border="0" width="293" height="199" id="圖片 19" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image012_en.jpg" alt="Technical Document Image Preview" /></a> </td> </tr> </table>

11. Evaluation Board Layout

Figure 1 and Figure 2 are RT8575GQW Evaluation Board layout. This board size is 100mm x 72mm and is constructed on two-layer PCB, top and bottom layers with 1 oz. <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image013_en.jpg"><img border="0" width="492" height="355" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image013_en.jpg" alt="一張含有文字, 螢幕擷取畫面, 電路, 電子產品的圖片自動產生的描述" /></a> Figure 1. Top View (1st layer) <a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image014_en.jpg"><img border="0" width="491" height="354" id="圖片 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt8575gqw/html-images/image014_en.jpg" alt="一張含有螢幕擷取畫面, 文字, Rectangle 的圖片自動產生的描述" /></a> Figure 2. Bottom View (2th Layer)
