overview

1. Purpose

<p class="MsoNormal">The The RT9081A is a high performance positive voltage regulator with separated bias voltage (V_BIAS), designed for applications requiring low input voltage and ultra low dropout voltage, output current up to 500mA. This document explains the function and use of the RT9081A evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.</p>

2. Introduction

<h3>General Product Information</h3> <p class="bady">The RT9081A is a high performance positive voltage regulator with separated bias voltage (V_BIAS), designed for applications requiring low input voltage and ultra low dropout voltage, output current up to 500mA. The feature of ultra low dropout voltage is ideal for applications where output voltage is very close to input voltage. The input voltage can be as low as 0.8V and the output voltage is adjustable by an external resistive divider. The RT9081A features very low quiescent current consumption for portable applications. The device is available in the ZADFN-6L 1.2x1.2 package.</p> <h3>Product Feature</h3> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Input Voltage Range : 0.8V to 5.5V</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Bias Voltage Range : 2.4V to 5.5V</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>1.5% Output Voltage Accuracy @ 25°C</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Ultra Low Dropout Voltage : 140mV at 500mA</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Low Bias Input Current :</p> <p class="Features">480μA in Operating Mode</p> <p class="Features">40.5μA in Disable Mode</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Enable Control</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Active Discharge Function</p> <p class="Features"><span style="font-size:6.0pt;font-family:Wingdings; font-weight:normal">l </span>Stable with a 1μF Output Ceramic Capacitor</p>

3. Key Performance Summary Table

<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="850" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Key Features</p> </td> <td width="65%" style="width:65.06%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Evaluation Board Number: PCB087_V1 </p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Input Voltage</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">V_OUT(Normal) + 0.3V < V_IN < 5.5V, V_OUT + 1.6V < V_BIAS < 5.5V</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Max Output Current</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">500mA</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Output Voltage</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">1.2V</p> </td> </tr> <tr style="height:17.0pt"> <td width="34%" style="width:34.94%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">Default Marking & Package Type</p> </td> <td width="65%" style="width:65.06%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">RT9081AGQZA(2), ZADFN-6L 1.2x1.2</p> </td> </tr> </table>

4. Bench Test Setup Conditions

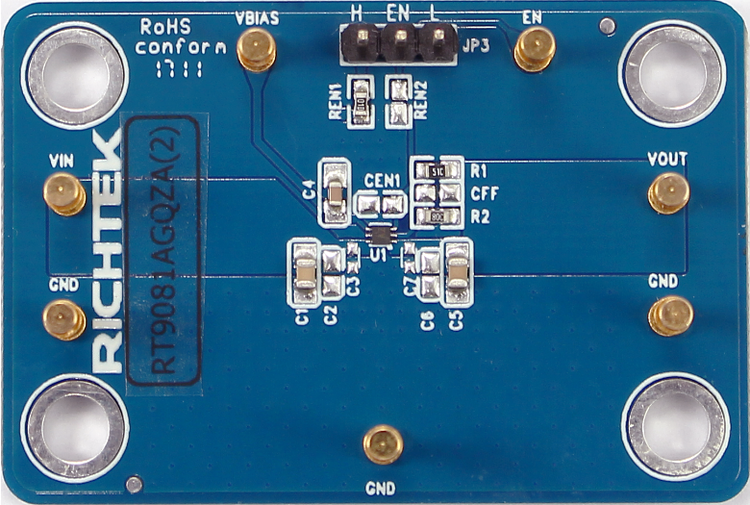

<h3>Headers Description and Placement </h3> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image001_en.png"><img width="425" height="286" id="圖片 6" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image001_en.png" alt="Technical Document Image Preview" /></a></p> <p class="2">Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a>.</p> <h3>Test Points</h3> <p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="850" style="width:510.2pt;border-collapse:collapse;border:none"> <tr style="height:1.0cm"> <td width="12%" style="width:12.76%;border:solid #009EB8 1.0pt;background: #009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpFirst">Test point/</p> <p class="23CxSpMiddle">Pin name</p> </td> <td width="22%" style="width:22.78%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpMiddle">Signal</p> </td> <td width="64%" style="width:64.46%;border:solid #009EB8 1.0pt;border-left: none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="23CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.76%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">VIN</p> </td> <td width="22%" style="width:22.78%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Input voltage</p> </td> <td width="64%" style="width:64.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Power input for the LDO.</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.76%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">EN</p> </td> <td width="22%" style="width:22.78%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Enable test point</p> </td> <td width="64%" style="width:64.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">LDO enable signal input.</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.76%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td width="22%" style="width:22.78%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td width="64%" style="width:64.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1CxSpLast">Ground.</p> </td> </tr> <tr style="height:1.0cm"> <td width="12%" style="width:12.76%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpFirst">VBIAS</p> </td> <td width="22%" style="width:22.78%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpMiddle">Power input for the internal control circuit</p> </td> <td width="64%" style="width:64.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:1.0cm"> <p class="ListParagraph1CxSpLast">Supply voltage for the LDO control circuit. Mandatory to power up V_BIAS before EN and VIN.</p> </td> </tr> <tr style="height:17.0pt"> <td width="12%" style="width:12.76%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">VOUT</p> </td> <td width="22%" style="width:22.78%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Output voltage</p> </td> <td width="64%" style="width:64.46%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="ListParagraph1">Power output for the LDO.</p> </td> </tr> </table>

5. Power-up & Measurement Procedure

<p class="MsoListParagraph">1. Connect input power (V_VOUT + 0.3V < V_IN < 5.5V, V_OUT + 1.6V < V_BIAS < 5.5V) and input ground to VIN/VBIAS and GND test pins respectively.</p> <p class="MsoListParagraph">2. Connect positive end and negative terminals of load to VOUT and GND test pins respectively.</p> <p class="MsoListParagraph">3. There is a 3-pin header “EN” for enable control. To use a jumper at “H” option to tie EN test pin to input power VIN for enabling the device. Inversely, to use a jumper at “L” option to tie EN test pin and ground GND for disabling the device.</p> <p class="MsoListParagraph">4. Verify the output voltage (approximately 1.2V) between VOUT and GND.</p> <p class="MsoListParagraph">5. Connect an external load up to 500mA to the VOUT and GND terminals and verify the output voltage and current.</p>

6. Output Voltage Setting

<p class="MsoNormal">Set the output voltage with the resistive divider (R1, R2) between VOUT and GND with the midpoint connected to FB. The output is set by the following formula:</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image002_en.jpg"><img border="0" width="193" height="49" id="圖片 1" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image002_en.jpg" alt="Technical Document Image Preview" /></a></p>

7. Schematic, Bill of Materials & Board Layout

<h3>EVB Schematic Diagram</h3> <h3><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image003_en.jpg"><img border="0" width="851" height="380" id="圖片 5" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image003_en.jpg" alt="Technical Document Image Preview" /></a></h3>

8. Bill of Materials

<table class="MsoTableLightListAccent2" border="1" cellspacing="0" cellpadding="0" width="97%" style="border-collapse:collapse;border:none"> <tr style="height:17.0pt"> <td width="14%" valign="top" style="width:14.54%;border:solid #009EB8 1.0pt; background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Reference</p> </td> <td width="6%" valign="top" style="width:6.86%;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Qty</p> </td> <td width="24%" valign="top" style="width:24.7%;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Part number</p> </td> <td width="17%" valign="top" style="width:17.96%;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Description</p> </td> <td width="17%" valign="top" style="width:17.98%;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Package</p> </td> <td width="17%" valign="top" style="width:17.98%;border:solid #009EB8 1.0pt; border-left:none;background:#009EB8;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Manufacture</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.54%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">U1</p> </td> <td width="6%" style="width:6.86%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.7%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RT9081AGQZA(2)</p> </td> <td width="17%" style="width:17.96%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">Linear Regulator</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">ZADFN-6L 1.2x1.2</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RICHTEK</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.54%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C1, C5</p> </td> <td width="6%" style="width:6.86%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">2</p> </td> <td width="24%" style="width:24.7%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C2012X7R1E105KT</p> </td> <td width="17%" style="width:17.96%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1µF/25V/X7R</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0805</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.54%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C4</p> </td> <td width="6%" style="width:6.86%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.7%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C1608X7R1H104K080AA</p> </td> <td width="17%" style="width:17.96%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">0.1μF/50V/X7R</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">C-0603</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">TDK</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.54%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R1</p> </td> <td width="6%" style="width:6.86%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.7%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">RTT033322FTP</p> </td> <td width="17%" style="width:17.96%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">33.2k</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">旺詮</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.54%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R2</p> </td> <td width="6%" style="width:6.86%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.7%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X6652FTL</p> </td> <td width="17%" style="width:17.96%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">66.5k</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> <tr style="height:17.0pt"> <td width="14%" style="width:14.54%;border:solid #009EB8 1.0pt;border-top: none;padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">REN1</p> </td> <td width="6%" style="width:6.86%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">1</p> </td> <td width="24%" style="width:24.7%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WR06X1003FTL</p> </td> <td width="17%" style="width:17.96%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">100k</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">R-0603</p> </td> <td width="17%" style="width:17.98%;border-top:none;border-left:none; border-bottom:solid #009EB8 1.0pt;border-right:solid #009EB8 1.0pt; padding:0cm 5.4pt 0cm 5.4pt;height:17.0pt"> <p class="MsoNormal">WALSIN</p> </td> </tr> </table>

9. PCB Layout

<p class="23CxSpFirst"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image004_en.jpg"><img border="0" width="426" height="286" id="圖片 3" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image004_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23CxSpLast">PCB Layout—Top View</p> <p class="MsoNormal"><a class="fancybox" href="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image005_en.jpg"><img border="0" width="425" height="286" id="圖片 4" src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9081agqza(2)/html-images/image005_en.jpg" alt="Technical Document Image Preview" /></a></p> <p class="23">PCB Layout—Bottom View</p>
