overview

1. Purpose

<p class="MsoNormal">The RT9480 is a high integration and this single chip includes a linear charger a synchronous Boost with dual output load management and a torch function support.This document explains the function and use of the RT9480 evaluation board (EVB) and provides information to enable operation and modification of the evaluation board and circuit to suit individual requirements. </p>

2. Introduction

<h3 class="21">General Product Description</h3> <p class="bady">The RT9480 is a high integration and easy to use power solution for Li-ion power bank and other powered handheld applications. We call it EZPBS™ (Easy to Use Power Bank Solution). This single chip includes a linear charger a synchronous Boost with dual output load management and a torch function support. The battery volume and the state of charging and discharging can be indicated by 4LEDs. The RT9480 is available in the WQFN-24L 4x4 package.</p> <h3 class="21">Product Features</h3> <p class="a2">EZPBS™ (Easy to Use Power Bank Solution)</p> <ul> <li> <div class="Features">Compact BOM Elements with EZPBS™ Single Chip</div> </li> <li> <div class="Features">Protection Functions (OTP, OVP, OCP, VBUS and Output Short Protection)</div> </li> <li> <div class="Features">Support Charging and Discharging at the same time by Smart Algorithm</div> </li> </ul> <div class="WordSection1"> Charger</div> <ul> <li> <div class="WordSection1"> One Linear Charger up to 1.2A</div> </li> <li> <div class="WordSection1">DPM Function (Dynamic Power Management)</div> </li> <li> <div class="WordSection1">Thermal Regulation</div> </li> <li> <div class="WordSection1">Auto-Recharge</div> </li> <li> <div class="WordSection1">Support JEITA Function</div> </li> </ul> <div class="WordSection1"> USB Output</div> <ul> <li> <div class="WordSection1"> Support Dual USB Output</div> </li> <li> <div class="WordSection1">Auto and Button Control</div> </li> <li> <div class="WordSection1">One Sync-Boost up to 2.5A</div> </li> <li> <div class="WordSection1">Peak Efficiency 97%</div> </li> </ul> <div class="WordSection1"> Battery State of Charge (SOC) Indicator</div> <ul> <li> <div class="WordSection1"> Battery SOC Detection</div> </li> <li> <div class="WordSection1">Support NTC for Battery Temperature Sensing</div> </li> <li> <div class="WordSection1">4 LEDs for Battery SOC Display</div> </li> </ul>

3. Application

<ul> <li> <div class="WordSection1"> Li-ion Power Bank</div> </li> </ul>

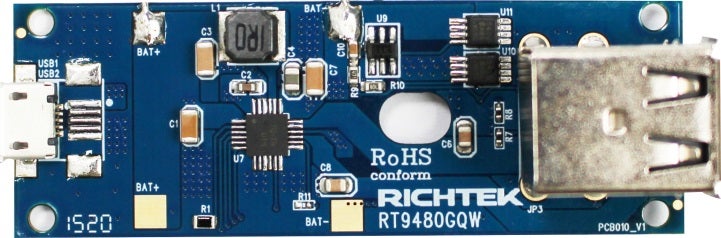

4. Evaluation Board

<p class="MsoNormal"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image001.jpg" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image001_en.jpg" alt="Technical Document Image Preview" style="width: 315px; height: 104px;" id="圖片 2" /></a> <a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image002.jpg" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image002_en.jpg" alt="Technical Document Image Preview" style="width: 324px; height: 107px;" id="圖片 4" /></a></p> <p class="2">Please carefully inspect the EVB IC and external components, comparing them to the following Bill of Materials, to ensure that all components are installed and undamaged. If any components are missing or damaged during transportation, please contact the distributor or send e-mail to <a href="mailto:evb_service@richtek.com" class="link">evb_service@richtek.com</a></p> <h3 class="21">Test Points</h3> <p class="MsoNormal">The EVB is provided with the test points and pin names listed in the table below.</p> <div class="WordSection1"> <table width="680" border="1" cellspacing="0" cellpadding="0" style="border: medium none currentcolor; width: 18cm; border-collapse: collapse;" class="MsoTableLightListAccent2"> <tbody> <tr style="height: 17pt;"> <td style="background: none repeat scroll 0% 0% #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 19.22%; height: 17pt;"> <p class="10CxSpFirst">Test point/Pin name</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 26.32%; height: 17pt;"> <p class="10CxSpMiddle">Signal</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 54.46%; height: 17pt;"> <p class="10CxSpLast">Comment (expected waveforms or voltage levels on test points)</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.22%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VBAT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 26.32%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 54.46%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input voltage range = 3V to 4.2V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.22%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">USBOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 26.32%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Output voltage </p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 54.46%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Output voltage = 5.1V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.22%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">VBUS</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 26.32%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Input voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 54.46%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Input voltage range = 4.75V to 5.25V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 19.22%; height: 17pt;"> <p class="ListParagraph1CxSpFirst">GND</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 26.32%; height: 17pt;"> <p class="ListParagraph1CxSpMiddle">Ground</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 54.46%; height: 17pt;"> <p class="ListParagraph1CxSpLast">Ground</p> </td> </tr> </tbody> </table> </div> <h3 class="21">Power-up & Measurement Procedure</h3> <p class="MsoListParagraph">RT9480 starts work by provide VBAT voltage then plug-in VBUS. </p> <p class="MsoListParagraph">Chargeing: Adapter or USB plug-in</p> <p class="MsoListParagraph">Discharging: PD plug-in</p>

5. Specification

<div class="WordSection1"> <table width="680" border="1" cellspacing="0" cellpadding="0" style="border: medium none currentcolor; width: 18cm; border-collapse: collapse;" class="MsoTableLightListAccent2"> <tbody> <tr style="height: 17pt;"> <td style="background: none repeat scroll 0% 0% #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; width: 190.4pt; height: 17pt;"> <p class="TableTitleDS">Parameter</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="TableTitleDS">Symbol</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="TableTitleDS">Min</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="TableTitleDS">Typ.</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="TableTitleDS">Max</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="TableTitleDS">Units</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 190.4pt; height: 17pt;"> <p class="Tablebadyright">VBUS Operation Voltage Range</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">5.5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 190.4pt; height: 17pt;"> <p class="Tablebadyright">Output Voltage</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">VOUTBST</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">5.1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">V</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 190.4pt; height: 17pt;"> <p class="Tablebadyright">Switching Frequency</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">FSW</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">250</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">kHz</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 190.4pt; height: 17pt;"> <p class="Tablebadyright">MAX Output Current</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">IOUT</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">2.5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 17pt;"> <p class="Tablebadycenter">A</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 190.4pt; height: 1cm;"> <p class="Tablebadyright">Battery Quiescent Current</p> <p class="Tablebadyright">for Standby_Auto Mode</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> <p class="Tablebadycenter">IBAT_sdy</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> <p class="Tablebadycenter">90</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> <p class="Tablebadycenter">μA</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; width: 190.4pt; height: 1cm;"> <p class="Tablebadyright">Battery Quiescent Current</p> <p class="Tablebadyright">for Standby_Button Mode</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> <p class="Tablebadycenter">IBAT_sdy</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> <p class="Tablebadycenter">30</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; width: 63pt; height: 1cm;"> <p class="Tablebadycenter">μA</p> </td> </tr> </tbody> </table> </div>

6. Schematic

<p class="a5"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image003.jpg" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image003_en.jpg" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 661px; height: 288px;" id="圖片 6" /></a></p>

7. BOM

<div class="WordSection1"> <table width="680" border="1" cellspacing="0" cellpadding="0" style="border: medium none currentcolor; width: 18cm; border-collapse: collapse;" class="MsoTableLightListAccent2"> <tbody> <tr style="height: 17pt;"> <td style="background: none repeat scroll 0% 0% #009eb8; padding: 0cm 5.4pt; border: 1pt solid #009eb8; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Reference</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Q'ty</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">P/N</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Description</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Package</p> </td> <td style="background: none repeat scroll 0% 0% #009eb8; border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="TableTitleDS">Manufacture</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">U7</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RT9480</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">E2U Power Bank Solution</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">WQFN-24L 4x4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RICHTEK</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">U9</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">S-8261ACKMD-G4KT2x</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">Battery Protection IC</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SOT-23-6</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SEIKO</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">U10, U11</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SIS438DN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">NMOS</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SIS438DN</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">VISHAY</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C1, C3, C7</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">EMK212ABJ106KD-T</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">10μF/16V/X5R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TAIYO</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C2, C6, C8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">EMK212B7105KD-T</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">1μF/16V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TAIYO</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt;"> <p class="Tablebadyright">C4, C5</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">LMK212BBJ226MD-T</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">22μF/10V/X5R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-0805</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TAIYO</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C10</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">UMR107B7104KA-T</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">0.1μF/50V/X7R</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">C-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TAIYO</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">L1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">LVS505040-1R0-N</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">Power Inductor</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">L-NR8040</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">CHILISIN</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RM06FTN1002</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">10K/0603/1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TA-I</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R7, R8</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RM04FTN4992</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">49.9K/0402/1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0402</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TA-I</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R9</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RM04FTN4700</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">470/0402/1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0402</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TA-I</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R10</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">RM04FTN2001</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">2K/0402/1%</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">R-0402</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">TA-I</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">D1, D2, D3, D4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">4</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SMD LED</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">D-0603</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SW1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">SW KEY-YM061</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">Switch</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">USB2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">USB-MICRO</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">USB-MICRO</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">JP3</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadycenter">1</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">USB PortX2</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> <p class="Tablebadyright">USB-A</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 5.4pt; height: 17pt; white-space: nowrap;"> </td> </tr> </tbody> </table> </div>

8. PCB Layout

<div class="WordSection1"> <table width="680" border="0" cellspacing="0" cellpadding="0" style="width: 510.2pt; border-collapse: collapse;" class="MsoNormalTable"> <tbody> <tr style="height: 17pt;"> <td style="padding: 0cm 1.4pt; width: 243pt; height: 17pt;"> <p class="MsoCommentText"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image004.jpg" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image004_en.jpg" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 298px; height: 104px;" id="圖片 7" /></a></p> </td> <td style="padding: 0cm 1.4pt; width: 243pt; height: 17pt;"> <p class="MsoNormal"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image005.jpg" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image005_en.jpg" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 287px; height: 104px;" id="圖片 8" /></a></p> </td> </tr> <tr style="height: 17pt;"> <td style="padding: 0cm 1.4pt; width: 243pt; height: 17pt;"> <p class="MsoNormal">Top View</p> </td> <td style="padding: 0cm 1.4pt; width: 243pt; height: 17pt;"> <p class="MsoNormal">Bottom View</p> </td> </tr> </tbody> </table> </div>

9. LED Indicator Function

<p class="bady">About LED indicator, it will follow below table to show SOC. The LED current is 0.75mA.</p> <p class="MsoNormal"><span style="color: #595959;">●●●●</span></p> <p class="MsoNormal">Low→High</p> <p class="MsoNormal"><span style="color: #595959;">●</span> : LED ON, ○ : LED OFF, <span style="color: #953734;">●</span> : LED FLASH</p> <div class="WordSection1"> <table width="323" border="1" cellspacing="0" cellpadding="0" style="border: medium none currentcolor; width: 242.25pt; margin-left: 0.65pt; border-collapse: collapse;" class="MsoNormalTable"> <tbody> <tr style="height: 17pt;"> <td style="padding: 0cm 1.4pt; border: 1pt solid #009eb8; width: 97.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Battery Voltage</p> </td> <td style="border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 144.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal"> Operation of Charging </p> </td> </tr> <tr style="height: 83.45pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 83.45pt; white-space: nowrap;"> <p class="MsoNormal">< 3700mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 144.9pt; height: 83.45pt; white-space: nowrap;"> <p class="MsoNormal"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image006.gif" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image006_en.gif" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 86px; height: 100px;" /></a></p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">> 3700mV </p> <p class="MsoNormal">< 3940mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 144.9pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image007.gif" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image007_en.gif" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 78px; height: 76px;" /></a></p> </td> </tr> <tr style="height: 51.95pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 51.95pt; white-space: nowrap;"> <p class="MsoNormal">> 3940mV </p> <p class="MsoNormal">< 4100mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 144.9pt; height: 51.95pt; white-space: nowrap;"> <p class="MsoNormal"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image008.gif" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image008_en.gif" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 78px; height: 55px;" /></a></p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">> 4100mV </p> <p class="MsoNormal">< 4200mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 144.9pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #595959;">●●●</span><span style="color: #953734;">●</span></p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">4200mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 144.9pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #595959;">●●●●</span></p> </td> </tr> </tbody> </table> </div> <p class="MsoNormal"> </p> <div class="WordSection1"> <table width="324" border="1" cellspacing="0" cellpadding="0" style="border: medium none currentcolor; width: 242.95pt; margin-left: 0.65pt; border-collapse: collapse;" class="MsoNormalTable"> <tbody> <tr style="height: 17pt;"> <td style="padding: 0cm 1.4pt; border: 1pt solid #009eb8; width: 97.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">Battery Voltage</p> </td> <td style="border-width: 1pt 1pt 1pt medium; border-style: solid solid solid none; border-color: #009eb8 #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 145.6pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal"> Operation of Discharging </p> </td> </tr> <tr style="height: 32.4pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 32.4pt; white-space: nowrap;"> <p class="MsoNormal">< 4200mV</p> <p class="MsoNormal">> 3880mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 145.6pt; height: 32.4pt; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #595959;">●●●●</span></p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">< 3880mV </p> <p class="MsoNormal">> 3720mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 145.6pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #595959;">●●●</span>○</p> </td> </tr> <tr style="height: 30.3pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 30.3pt; white-space: nowrap;"> <p class="MsoNormal">< 3720mV </p> <p class="MsoNormal">> 3500mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 145.6pt; height: 30.3pt; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #595959;">●●</span>○○</p> </td> </tr> <tr style="height: 1cm;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal">< 3500mV </p> <p class="MsoNormal">> 3200mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 145.6pt; height: 1cm; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #595959;">●</span>○○○</p> </td> </tr> <tr style="height: 17pt;"> <td style="border-width: medium 1pt 1pt; border-style: none solid solid; border-color: currentcolor #009eb8 #009eb8; padding: 0cm 1.4pt; width: 97.35pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal">< 3200mV </p> <p class="MsoNormal">> 2800mV</p> </td> <td style="border-width: medium 1pt 1pt medium; border-style: none solid solid none; border-color: currentcolor #009eb8 #009eb8 currentcolor; padding: 0cm 1.4pt; width: 145.6pt; height: 17pt; white-space: nowrap;"> <p class="MsoNormal"><span style="color: #953734;">●</span>○○○</p> </td> </tr> </tbody> </table> </div>

10. Charging Test with 6000mAh

<p class="a5"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image009.gif" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image009_en.gif" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 580px; height: 400px;" id="圖片 5" /></a></p>

11. Boost Efficiency Test

<p class="a5"><a href="~/media/Richtek/Design%20Support/Technical%20Documentation/UG9480GQW/EN/Version2/image010.gif" class="fancybox"><img src="/content/dam/richtek-eds/resources/evaluation-boards/evb_rt9480gqw/html-images/image010_en.gif" alt="Technical Document Image Preview" style="border-width: 0px; border-style: solid; width: 484px; height: 400px;" id="圖片 3" /></a></p>
