R7731A 是一款高性能、低成本、低启动电流的电流模式 PWM 控制器。它具有三重丛发模式 (Burst Triple Mode)，以支援绿能模式省电操作。R7731A 整合了软启动功能、欠压锁定（UVLO）、前缘遮蔽（LEB）、过温保护（OTP）和内部斜率补偿。它提供用户一个优异的，更高效率、较低外部元件数、较低成本的解决方案的 AC / DC 电源应用。为保护外部功率 MOSFET 不受电源过电压的损坏，将R7731A输出驱动器限定在12V。此外，R7731A 尚具备多项保护功能，如超载保护（OLP）和过压保护（OVP），能省去外部保护电路，并提供可靠的操作。 R7731A 是采用 SOT-23-6 和 DIP-8 封装。

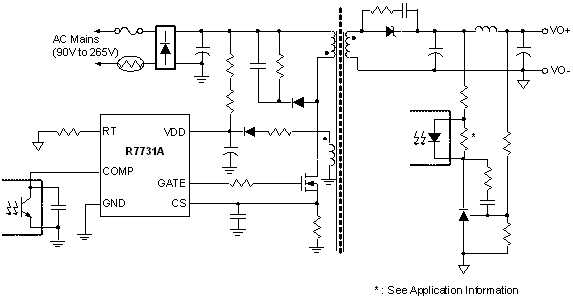

R7731A 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>极低的启动电流 (<30μA) </li><li>10/14V欠压锁定 (UVLO) </li><li>软启动功能 </li><li>电流模式控制 </li><li>可抖动的切换频率 </li><li>内部前缘遮没 </li><li>内建斜率补偿 </li><li>支援绿能模式的三重丛发模式 (Burst Triple Mode) PWM </li><li>逐周期电流限制 </li><li>回授开路保护 </li><li>过压保护 </li><li>过温保护 </li><li>超载保护 </li><li>抑制电磁干扰 (EMI) 的软启动 </li><li>可驱动±200mA </li><li>高杂讯抗扰性 </li><li>光耦合器短路保护 </li><li>符合RoHS标准及不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

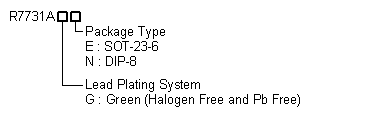

R7731A 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
R7731A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
R7731A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>变压器和电池充电器 </li><li>ATX 待机电源 </li><li>机上盒 (STB) </li><li>DVD and CD(R) </li><li>电视/显示器待机电源 </li><li>电脑周边 </li></ul></div>
