RT1711P是USB-C型介面及电力传输 (PD) 控制器，符合最新的USB Type-C介面和PD协定的标准。它整合了完整的Type-C收发器，含有Type-C终端电阻Rp和Rd，具备USB-C型埠检测能力，可进行插拔检测和方向判断。它整合了USB PD协定BMC编解码实体层，使采用它的埠可有高达100W功率传输的能力和进行供需角色互换的能力，支援进入USB-C型介面标准所定义的Alternate Modes，相容其它应用类型。它提供了完整的电源管理解决方案，含有可控的插座供电路径和VBUS路径管理措施对系统充电进行管理。当作为电源供应端出现在系统中时，它提供了平滑的电压变化过程，避免出现USB PD供电合约执行过程中的电压变化过程不连续问题。

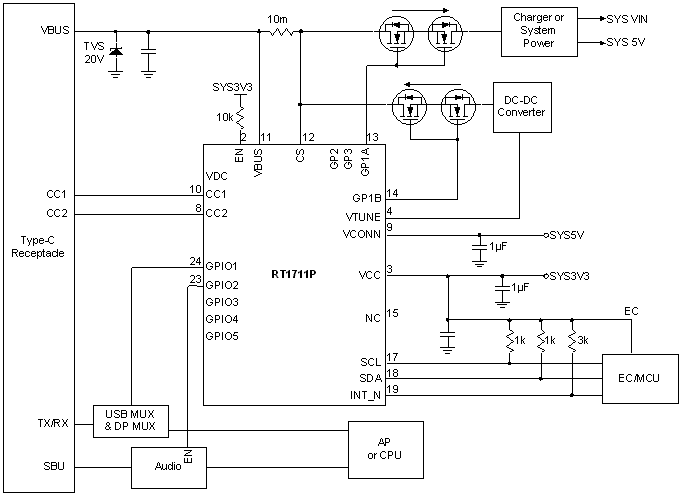

RT1711P 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>PD协定相容的双重角色控制能力 </li><li>支援USB PD3.0和TCPC1.0协定 </li><li>完整的电源路径管理能力 <ul class="lv2"> <li></li><li>插座供电路径管理，支援电压高达20V的应用 (使用N-MOSFET开关) </li><li>PD供电端和用电端的路径管理能力，支援电压高达20V的应用 (使用N-MOSFET开关) </li></ul> </li><li>保护能力 <ul class="lv2"> <li></li><li>作为VBUS供电端的可程式控制过流保护和过压保护 </li><li>VBUS路径上的辅助放电功能 </li><li>VCONN供电有可程式控制的电流限制 </li><li>VCONN端有过压保护和放电功能 </li><li>CC端具备20V短路保护能力 </li></ul> </li><li>可对DC/DC输出电压进行调节 </li><li>可对电流容量进行定义和检测 </li><li>可对电缆进行识别，支援替换模式应用 </li><li>支援电池无电和未装电池的应用 </li><li>以低功耗模式进行插入检测 </li><li>支援BIST模式 </li><li>有GPIO可用 </li><li>24引脚WQFN封装 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

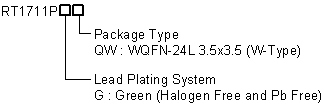

RT1711P 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT1711P
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT1711P
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>平板电脑 </li><li>笔记型电脑 </li><li>显示器 </li><li>行动电源 </li><li>TV </li></ul></div>
