8
8
8
4
1rem
1rem
1rem
1rem
rt-dark-800
headline-3
false
true
basicInfoTitle
12
12
12
12
left
buttonParametricSearch
text-with-icon
i18n(button-item.parametric-search.button-label)
i18n(button-item.parametric-search.button-link)
_self
true
buttonDatasheet
text-with-icon
secondary
i18n(button-item.datasheet.button-label)
i18n(button-item.datasheet.button-link)
_self
true
buttonContactUs
text-with-icon
secondary
i18n(button-item.contact-us.button-label)
i18n(button-item.contact-us.button-link)
_self
true
36
24
24
12
rt-dark-800
basicInfoSubtitle
basicInfoImageSwitcher
RT1738A 是 USB-C 型接口过压保护 IC，可将 CC/SBU 端子从与相邻 VBUS 端子的短路事件中可能接触的 3.3V~21V PD 传输电压可能带来的危害里保护下来，其保护能力最高可达 28V。</br>RT1738A 还根据 IEC61000-4-2 对静电接触放电防护的要求对 CON_CC1/CON_CC2 提供 ±8KV、对 CON_SBU1/CON_SBU2 提供 ±6KV 的静电放电防护能力。CON_CC1/CON_CC2 对电压冲击的防护能力达 ±35V，其过压保护的响应速度达 60ns，可确保系统芯片在应用中的安全。</br>RT1738A 的封装形式为 WQFN 3x3。
3

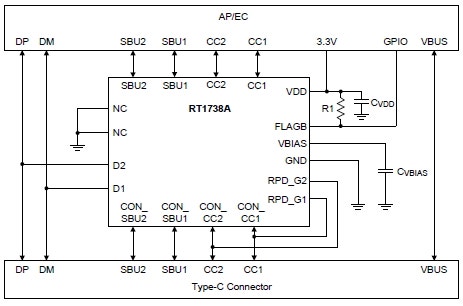

RT1738A 电路图
width
fixed-width
altText
Product Spec Banner
backgroundColor
FFFFFF
id
basicInfoSection
width
fixed-width
enableMask
false
maskGradient
dark
hideSection
false
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>为 CON_CC1、CON_CC2、CON_SBU1 和 CON_SBU2 共 4 个通道提供过压保护 </li><li>符合 IEC61000-4-2 规格的接触静电释放保护 <ul class="lv2"> <li></li><li>CON_CC1/CON_CC2：±8kV </li><li>CON_SBU1/CON_SBU2：±6kV </li></ul> </li><li>CON_CC1、CON_CC2、CON_SBU1 和 CON_SBU2 各端子可承受电压高达 28V </li><li>SBU 端过压保护响应时间为 60ns </li><li>CC 端过压保护响应时间为 80ns </li><li>CC 线开关导通电阻典型值为 255mΩ </li><li>SBU 线开关导通电阻典型值为 3.6Ω </li><li>待机静态电流消耗为 40μA </li><li>SBU 线开关信号带宽为 1GHz </li><li>支持电池失效状态 </li><li>WL-CSP-16B 1.62x1.62 (BSC) 封装 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
3

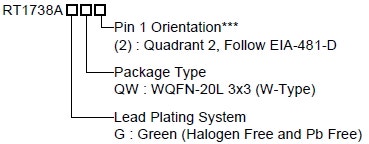

RT1738A 订购信息
normal-table
card-list
products
productTable
width
fixed-width
enableMask
false
maskGradient
dark
hideSection
false
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT1738A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT1738A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>个人电脑、笔记本电脑 </li><li>智能手机和平板电脑 </li><li>电视机和显示器 </li><li>使用 USB-C 型接口的 Dongle、Docking 和 集线器 </li></ul></div>
applicationContent
35
35
35
35
keywordList
56
56
56
56
width
fixed-width
id
applicationSection
rt-blue-800
i18n(text.support-card-title.text-content)
supportCardTitle
withLine
40
40
40
24
supportCards
i18n(support-card-item.technical-support.title)
i18n(support-card-item.technical-support.description)
i18n(support-card-item.technical-support.learn-more-text)
i18n(support-card-item.technical-support.url)
technicalSupportCard
i18n(support-card-item.ordering.title)
i18n(support-card-item.ordering.description)
i18n(support-card-item.ordering.learn-more-text)
i18n(support-card-item.ordering.url)
orderingSupportCard
i18n(support-card-item.sales.title)
i18n(support-card-item.sales.description)
i18n(support-card-item.sales.learn-more-text)
i18n(support-card-item.sales.url)
salesSupportCard
56
56
56
32
width
fixed-width
id
supportSection
