8
8
8
4
1rem
1rem
1rem
1rem
rt-dark-800
headline-3
false
true
basicInfoTitle
12
12
12
12
left
buttonParametricSearch
text-with-icon
i18n(button-item.parametric-search.button-label)
i18n(button-item.parametric-search.button-link)
_self
true
buttonDatasheet
text-with-icon
secondary
i18n(button-item.datasheet.button-label)
i18n(button-item.datasheet.button-link)
_self
true
buttonContactUs
text-with-icon
secondary
i18n(button-item.contact-us.button-label)
i18n(button-item.contact-us.button-link)
_self
true
36
24
24
12
rt-dark-800
basicInfoSubtitle
width
fixed-width
altText
Product Spec Banner
backgroundColor
FFFFFF
id
basicInfoSection
basicInfoImageSwitcher
RT2657是一款高效率的脉宽调变（PWM）降压型DC/ DC转换器，能在宽输入电压2.7V至5.5V范围下，提供600mA输出电流。RT2657非常适合于那些由单节锂离子电池或其他电源来供电的可携式电子装置，如手机，PDA，手持装置，游戏机及相关配件。有低R<sub>DS(ON)</sub>的内部同步整流器能显著降低PWM模式时的导通损耗。在实际应用中，无需外部萧基二极体。当正常的脉冲 - 宽度模式不能提供稳定的输出电压时，RT2657会进入低压差模式而连续导通高侧的P-MOSFET。当EN接脚为低电位时，RT2657会进入电源关闭模式，仅消耗小于5μA的电流。由于操作频率固定在 2.25MHz，开关切换造成的涟波很容易借小尺寸的过滤元件而过滤掉。RT2657采用小型WDFN-6SL 2x2封装。

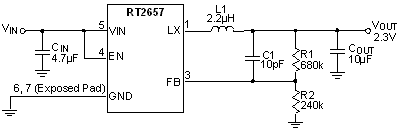

RT2657 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>V<sub>IN</sub>范围 : 2.7V至 5.5V </li><li>V<sub>OUT</sub> 范围 : 0.6V至 5.5V (100% 责任周期操作 ) </li><li>V<sub>REF</sub> = 0.6V </li><li>I<sub>SD</sub> ≤ 5μA (V<sub>EN</sub> = 0V) </li><li>电流模式控制与内部补偿 </li><li>固定 F<sub>SW</sub> 2.25MHz </li><li>R<sub>DS(ON)</sub> 230mΩ 高侧 / 250mΩ 低侧 (P-MOSFET/N-MOSFET) </li><li>启用 (V<sub>IH</sub> = 1V, V<sub>IL</sub> = 0.4V); 内部软启动 (0.3ms) </li><li>最高600mA的输出电流 </li><li>高达90%的高效率 </li><li>I<sub>LIMIT</sub> 峰值 ( 典型值 1.5A / 最小值 0.8A) ；欠压锁定 (UVLO)，欠压保护 (UVP)， V<sub>IN</sub> 和 V<sub>OUT</sub> 过压保护 (OVP) 及过温保护(OTP) 150°C </li><li>无需萧基二极体 </li><li>内部补偿以减少外部元件数 </li><li>符合RoHS标准及不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

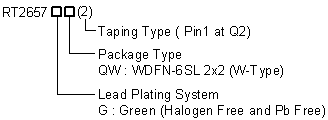

RT2657 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT2657
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT2657
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Portable Instruments </li><li>Game Console and Accessories </li><li>Microprocessors and DSP Core Supplies </li><li>Cellular Phones </li><li>Wireless and DSL Modems </li><li>PC Cards </li><li>Automotive InfoTainMent </li></ul></div>
applicationContent
35
35
35
35
keywordList
56
56
56
56
width
fixed-width
id
applicationSection
rt-blue-800
i18n(text.support-card-title.text-content)
supportCardTitle
withLine
40
40
40
24
supportCards
i18n(support-card-item.technical-support.title)
i18n(support-card-item.technical-support.description)
i18n(support-card-item.technical-support.learn-more-text)
i18n(support-card-item.technical-support.url)
technicalSupportCard
i18n(support-card-item.ordering.title)
i18n(support-card-item.ordering.description)
i18n(support-card-item.ordering.learn-more-text)
i18n(support-card-item.ordering.url)
orderingSupportCard
i18n(support-card-item.sales.title)
i18n(support-card-item.sales.description)
i18n(support-card-item.sales.learn-more-text)
i18n(support-card-item.sales.url)
salesSupportCard
56
56
56
32
width
fixed-width
id
supportSection
