使用 VQFN-20L 3.5x4 热加强封装的 RT2659 是具备 6V 输入、6A 输出能力的同步降压 DC/DC 转换器，设计用于 DDR 记忆体汇流排的终端调节器，它具有持续 6A 的电流吐纳能力和恒定的 1/2 VDDQ 输出。它所采用的使用外部补偿电路的电流模式 COT 架构赋予其在全负载范围内的经过优化的瞬态回应能力，并在全输入、输出范围内具有几乎恒定的开关切换工作频率。多个不同的过流限制阈值和开关切换工作频率设定集赋予不同应用优化的电源设计。<Br>通过使用集成化的 20mΩ/10mΩ MOSFET 开关，效率得到了最大化提升；逐周期电流限制保护可对抗输出短路；输出电压对外部输入的跟踪功能、输出端软放电、Power Good 指示、输出电压随载下降功能都被 RT2659 收纳其中。该器件可在 0°C~105°C 温度范围内工作，并且都能提供卓越的调节性能，其参考电压在全温度范围内都能保持 ±1% 的精度。

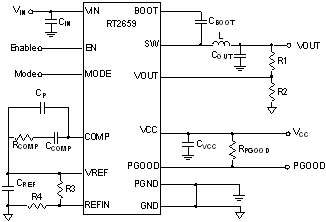

RT2659 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>持续 6A 输出电流吐纳能力，输出电压随载下降，满足 DDR 记忆体终端调节应用的需要 </li><li>集成20mΩ/10mΩ MOSFET功率开关 </li><li>输入电压范围：1V~6V </li><li>输出电压调节范围：0.6V~2V </li><li>电流模式恒定导通时间( CMCOT )控制架构，瞬态回应速度高 </li><li>支持所有 MLCC 类型输出电容和 SP/POSCAP 电容，回路稳定性好 </li><li>可选工作频率：600kHz/1MHz </li><li>支持预偏置启动过程 </li><li>过流保护阈值可选 </li><li>多种工作模式选项，支援不同应用需求 </li><li>外部跟踪启动过程 </li><li>使能控制和 Power Good 指示 </li><li>欠压和过压保护 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

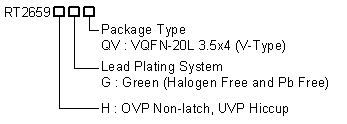

RT2659 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT2659
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT2659
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>DDR-2/3/4 V<sub>TT</sub> 电压调节器（1/2 V<sub>DDQ</sub>)，可供企业级伺服器、网路交换机和路由器、存储装置、通讯基站和工业设备等使用 </li><li>企业级 POL （使用精密内部 VREF) </li></ul></div>
