RT2859A/B 是一款 650kHz、3A 同步降压稳压器，内置功率开关和同步整流器。其采用先进的 ACOT®（Advanced Constant On-Time）控制架构，可提供快速瞬态响应，并能够在搭配小容量陶瓷输出电容的情况下保持稳定运行，无需复杂的外部补偿电路。输入电压范围为 4.5V 至 18V，输出电压可在 0.765V 至 7V 之间调节。专有的 ACOT® 控制技术相比其他快速响应定导通时间架构具有更优异的性能，可在不同输入电压、负载及输出电压条件下保持近乎固定的开关频率。由于没有内置时钟，因此对负载瞬态的响应几乎是即时的，电感电流可迅速提升以维持输出稳压，而无需使用大容量输出电容。RT2859A/B 专为陶瓷输出电容优化设计，并具备稳定运行能力。内置 70mΩ 高侧开关和 70mΩ 同步整流器，使其在各种应用中均能展现优异效率，尤其适用于低输出电压和低占空比应用。产品还提供逐周期电流限制、输入欠压锁定（UVLO）、可外部调节软启动、输出欠压保护、输出过压保护以及过温关断保护，确保在各种工作条件下均能安全稳定运行。RT2859A 与 RT2859B 均采用带散热焊盘的 WQFN-16L 3mm × 3mm 封装，其中 RT2859B 即使在轻载时仍保持连续开关模式，以避免低频干扰；而 RT2859A 则在轻载时采用节能的不连续导通模式，以提高效率。
3

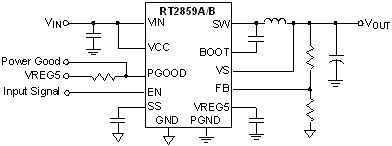

RT2859A/RT2859B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Fast Transient Response </li><li>Steady 650kHz Switching Frequency at all Load Current (RT2859B) </li><li>Discontinuous Operating Mode at Light Load (RT2859A) </li><li>3A Output Current </li><li>Advanced Constant On-Time (ACOT<sup>®</sup>) Control </li><li>Optimized for Ceramic Output Capacitors </li><li>4.5V to 18V Input Voltage Range </li><li>Internal 70mΩ Switch and 70mΩ Synchronous Rectifier </li><li>0.765V to 7V Adjustable Output Voltage </li><li>Externally-Adjustable, Pre-Biased Compatible Soft-Start </li><li>Cycle-by-Cycle Current Limit </li><li>Optional Output Discharge Function </li><li>Output Over- and Under-voltage Shut Down </li><li>Latched (RT2859ALGQW/RT2859BLGQW Only) </li><li>With Hiccup Mode (RT2859AHGQW/RT2859BHGQW Only) </li><li>Input Under-Voltage Lockout </li><li>Thermal Shutdown </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
3

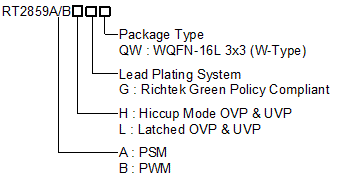

RT2859A/RT2859B 订购信息
