RT4720AC是整合了三个DC-DC转换器的AMOLED用电源IC，含有2组升压电路和一组反相电路，分别为AMOLED显示器提供其需要的正负电压。<BR>于可擕式应用而言，板面空间和效率总是处于关注的焦点上，高频工作的RT4720AC容许使用低感量的电感器以实现板面空间的节约。它的负压输出和AVDD输出电压是可由MCU通过单线 (SWIRE引脚) 通讯来进行程式控制的，输出负压的范围为-1.4V至-5.4V，AVDD输出电压的范围是5.8V至7.9V。它还具有OTP、SCP、UVLO和过流保护功能，使用了WQFN-16L 3x3封装。

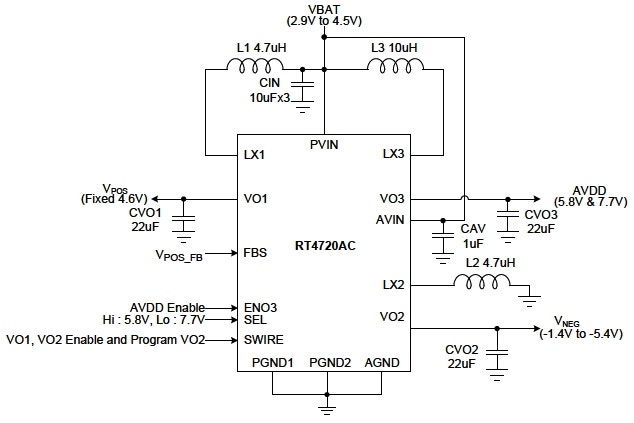

RT4720AC 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Boost转换器输出AVDD正压的电压范围是5.8V至7.7V </li><li>Boost转换器提供给AMOLED的电源电压是4.6V </li><li>反相转换器提供给AMOLED的负压范围是-1.4V至-5.4V </li><li>供给AMOLED的正负压都具有高达300mA的负载能力 </li><li>AVDD固定5.8V或7.7V输出电压的最大输出电流可达50mA </li><li>典型效率峰值：90% (40mA至150mA) </li><li>PWM模式的工作频率为1.5MHz </li><li>输出电压精准度高 </li><li>极佳的线路、负载瞬变回应特性 </li><li>极佳的线路、负载调节性能 </li><li>通过SWIRE引脚即可对负压和AVDD输出电压进行程式控制 </li><li>有快速输出端放电功能 </li><li>关机模式下的电流消耗小于1μA </li><li>有内部软起动限制浪涌电流 </li><li>过热保护 (OTP) </li><li>过流保护 (OCP) </li><li>短路保护 (SCP) </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

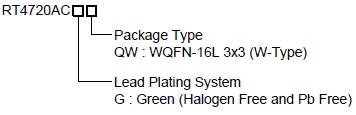

RT4720AC 订购信息
