RT5086D是专用于3.3V或5V电源输入的SSD (Solid State Drive, 固态硬碟驱动器) 的完整电源解决方案，内含6个Buck降压转换器，可以不同的时序支援各种不同负载的应用。<BR>RT5086D提供可配置的输出为SSD控制器、NAND快闪记忆体、I/O介面和DRAM记忆体供电，它使用专用的I<SUP>2</SUP>C介面支援动态电压调整功能，也支援低功耗模式以最小化待机状态下的电源消耗。

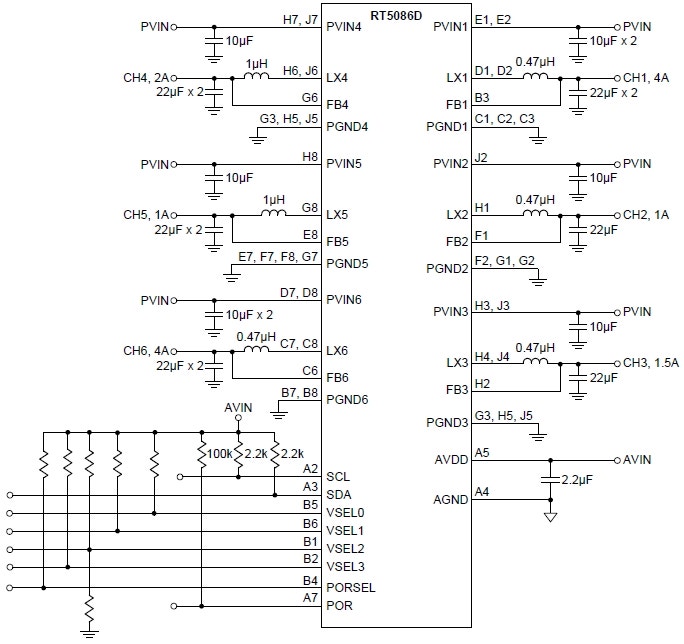

RT5086D 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>电源输入电压范围：2.9V至5.5V </li><li>6个高效低压Buck转换器 <ul class="lv2"> <li></li><li>10mA负载下效率高达85% </li><li>CH1：2.3V至3.45V输出，50mV级差，负载能力4A </li><li>CH2：0.9V至1.575V输出，25mV级差，负载能力1A </li><li>CH3：0.9V至2.1V输出，50mV级差，负载能力1.5A </li><li>CH4：1.1V至1.65V或3V至3.6V输出，级差50mV，负载能力2A </li><li>CH5：1.4V至3.6V输出，100mV级差，负载能力1A </li><li>CH6：0.7V至1.3V输出，25mV级差，负载能力4A </li><li>预设工作频率：CH2/3为2MHz,CH5为1MHz，CH6为2.5MHz </li><li>CH4预设工作频率：1.1V至1.65V输出时为2MHz，3V至3.6V输出时为1MHz </li><li>CH1：2MHz预设工作频率，0.8MHz至2.3MHz程式控制可调 </li></ul> </li><li>VSEL0 & VSEL1 & VSEL2 & VSEL3用于预设输出电压 </li><li>低功耗模式下静态电流消耗超低 </li><li>高速I<sup>2</sup>C介面用于输出设置 </li><li>POR阈值可选，开漏POR指示 </li><li>启动期间确定电源时序 </li><li>具过压保护、欠压保护、欠压锁定保护功能 </li><li>具热关机保护功能 </li><li>CH1/4/5支援旁路模式和Buck模式 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher
RT5086D 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT5086D
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT5086D
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>固态硬碟驱动器 </li></ul></div>
