RT5509是具有边缘切割喇叭保护演算法的单声道BTL D放大器。此外，采用DC-DC升压转换器可为D类放大器提供有效的电源。I<SUP>2</SUP>S介面支援两种不同的音频源，而一对辅助DATAI / O用于立体声模式或直通应用。晶片信息包括增益、喇叭保护输出或电流检测能够通过DATAO通过适当的寄存器设置进行监控。扬声器保护提供机械/热保护，精准度为额定限制的10%/±10°C。

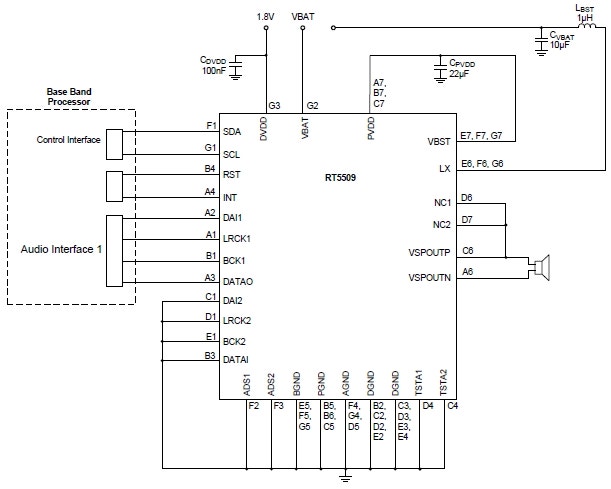

RT5509 电路图
