RT6206A 是一款采用先进固定导通时间控制（Advanced Constant On-Time，ACOT™）架构的同步降压 DC/DC 转换器。产品可在 4.5V 至 18V 的输入电压范围内运作，并提供最高 5.5A 的输出电流，达成高功率密度设计。 RT6206A 采用专有 ACOT™ 控制技术，可在广泛负载范围及各类陶瓷电容条件下提供优异的暂态响应能力。此架构允许使用超低 ESR 输出电容，并确保系统稳定运作。此外，RT6206A 在输入电压与负载变化时仍能维持优异的固定开关频率特性，搭配内建同步功率开关，可于全输出电流范围内提供高转换效率。 产品具备逐周期限流保护（Cycle-by-Cycle Current Limit），透过低侧 MOSFET 谷值电流侦测（Valley Current Detection）提供精准的过电流保护。外部可设定软启动（Soft-Start）功能可有效抑制启动期间的输入涌入电流。此外，RT6206A 内建过温保护（Thermal Shutdown）功能，以提升系统安全性与可靠性。 RT6206A 提供 TSSOP-14（Exposed Pad）、SOP-8（Exposed Pad）及 WDFN-10L 3mm × 3mm 等封装选项。

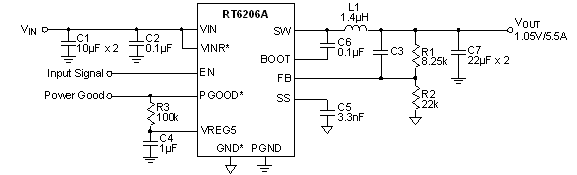

RT6206A 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>ACOT<sup>TM</sup> Mode Enables Fast Transient Response </li><li>4.5V to 18V Input Voltage Range </li><li>5.5A Output Current </li><li>35mΩ Internal Low Side N-MOSFET </li><li>Advanced Constant On-Time Control </li><li>Support All Ceramic Capacitors </li><li>Up to 95% Efficiency </li><li>Adjustable Output Voltage from 0.765V to 7V </li><li>Adjustable Soft-Start </li><li>Cycle-by-Cycle Current Limit </li><li>Input Under-Voltage Lockout </li><li>Thermal Shutdown </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

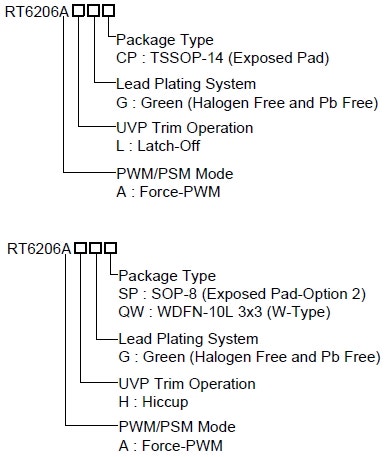

RT6206A 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT6206A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT6206A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Industrial and Commercial Low Power Systems </li><li>Computer Peripherals </li><li>LCD Monitors and TVs </li><li>Green Electronics/Appliances </li><li>Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs </li></ul></div>
