RT6217F是使用TSOT-23-8 (FC) 封装、简单易用的同步Buck转换器，工作电压范围为4.5V至24V，内建0.791V高精准度参考电压源，整合了低R<sub>DS(ON)</sub>的MOSFET功率开关，转换效率高。<br>RT6217F使用改进型固定导通时间 (ACOT<sup>TM</sup>) 控制架构，瞬态回应速度快，周边元件少，在全输入电压、负载和输出电压范围内都有基本恒定的工作频率。它的工作模式可用MODE引脚进行选择，将其接地则在轻载时进入PSK模式以提高效率，将其拉高 (>2V) 在强制其一直处于CCM工作模式，确保任何情况下都有很好的输出电压调节精准度，分别满足不同应用的需求。<br>RT6217F对上下桥MOSFET流过的电流都会进行检测以实现强悍的过流保护功能，还有逐周期电流限制机制防范输出短路、过流或电感饱和等恶劣状况所带来的危险。它内置的软起动功能可预防启动期间出现的电流冲击，还有输入欠压锁定保护、输出欠压保护、过热保护 (热关机) 等确保各种运行状态下的安全稳定。RT6217F使用晶核倒装的TSOT-23-8 (FC) 封装供货。

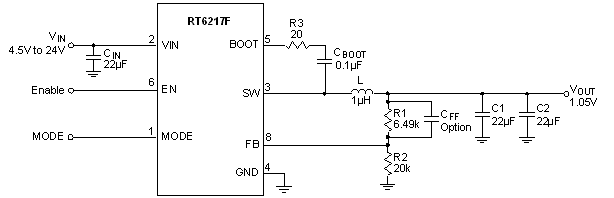

RT6217F 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>内建85mΩ/40mΩ功率开关的3A Buck转换器 </li><li>输入电压范围：4.5V至24V </li><li>输出电压范围：0.791V至6V </li><li>改进型固定导通时间 (ACOT<sup>TM</sup>) 控制架构 </li><li>超快速瞬态回应 </li><li>无需外部补偿 </li><li>针对低ESR陶瓷输出电容进行了优化 </li><li>使用0.791V±1.5%高精准度回馈参考电压 </li><li>150μA (典型值) 静态电流 </li><li>上下桥均参与过流保护 </li><li>可选节能模式 (PSM) 或强制PWM模式 </li><li>使用了轻载PSM模式下的输出纹波消减技术 </li><li>稳定的工作频率 (800kHz) </li><li>内置软启动功能 (1500μs 典型值) </li><li>预偏置下的单调启动过程 </li><li>输入欠压锁定保护 </li><li>打嗝模式的输出欠压保护 </li><li>过热保护 (过热关机) </li><li>使能控制 </li><li>符合RoHS规范，不含卤素 </li><li>TSOT-23-8 (FC) 封装 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

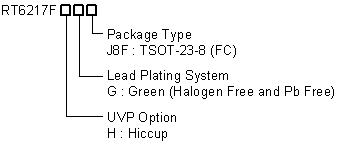

RT6217F 订购信息
