RT6252A/RT6252B 是一款简单易用的 2A 同步降压 DC-DC 转换器，输入电压范围为 4.5V 至 17V。产品具备高精度参考电压，并整合低导通电阻（RDS(ON)）功率 MOSFET，以实现高转换效率。 RT6252A/RT6252B 采用先进固定导通时间控制（Advanced Constant On-Time，ACOT®）架构，仅需少量外部元件即可提供超快速暂态响应，并能在输入电压、负载及输出电压变化范围内维持近乎固定的开关频率。 RT6252A 采用自动省电模式（PSM），可于轻载运作时维持高效率；RT6252B 则采用强制 PWM 模式（Forced PWM），可满足对输出电压稳定度要求较高的应用需求。 RT6252A/RT6252B 可同时侦测高侧与低侧 MOSFET 电流，以提供可靠的过电流保护（OCP）。产品具备逐周期限流保护（Cycle-by-Cycle Current Limit Protection），可防止因输出短路、过电流或电感饱和等状况造成元件损坏。 此外，内建软启动（Soft-Start）功能可有效抑制启动期间的涌入电流。产品亦整合输入欠压锁定保护（UVLO）、输出欠压保护（UVP）及过温保护（OTP），以确保各种操作条件下皆能安全且稳定运作。

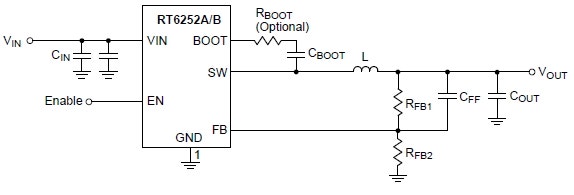

RT6252A/RT6252B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>2A Converter Integrated 140mΩ and 84mΩ FETs </li><li>Input Supply Voltage Range : 4.5V to 17V </li><li>Output Voltage Range : 0.765V to 7V </li><li>Advanced Constant On-Time (ACOT<sup>®</sup>) Control <ul class="lv2"> <li></li><li>Ultrafast Transient Response </li><li>Optimized for Low-ESR Ceramic Output Capacitors </li></ul> </li><li>High Accuracy Feedback Reference Voltage : Typ. ± 1% </li><li>Optional for Operation Modes : <ul class="lv2"> <li></li><li>Automatically Power Saving Mode (PSM) (RT6252A) </li><li>Forced PWM Mode (RT6252B) </li></ul> </li><li>Fixed Switching Frequency : 580kHz </li><li>Enable Control and Internally Fixed Soft-Start </li><li>Safe Start-Up from Pre-biased Output </li><li>Input Under-Voltage Lockout (UVLO) </li><li>Output Under-Voltage Protection (UVP) with Hiccup Mode </li><li>High- /Low-side MOSFET OCP and OTP Function </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

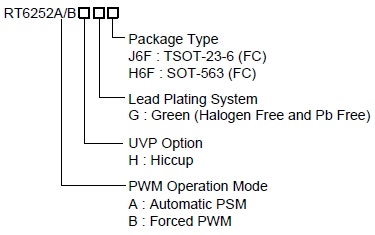

RT6252A/RT6252B 订购信息
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT6252A/RT6252B
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT6252A/RT6252B
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Set-Top Boxes </li><li>LCD TVs </li><li>Home Networking Devices </li><li>Surveillance </li><li>General Purpose </li></ul></div>
