RT6253A/B 是输入电压范围为 4.5V~17V、负载能力为 3A、简单易用的同步 Buck 转换器，内含高精度参考电压源和低 R<SUB>DS(ON)</SUB> MOSFET 功率开关，具有极高的转换效率。<BR>RT6253A/B 采用 ACOT<SUP>®</SUP> 改进型固定导通时间控制架构，具有瞬态回应速度快、周边元件少、工作频率在整个输入、输出范围内基本保持恒定等特性。轻载条件下，RT6253A 自动运行于 PSM 模式以维持其高转换效率，RT6253B 则工作于强制 PWM 模式以满足高输出电压调整精度的需求。<BR>RT6253A/B 通过对上下桥通过电流的检测实现强劲的过流保护，逐周期进行的电流限制可避免出现输出端短路、过流和电感饱和等情况可能导致的致命危险，内建的软启动功能可消除启动期间的电流冲击，它还具有输入欠压保护、输出欠压保护和过热保护等功能，在各种工作条件下均可安全稳定地运行。

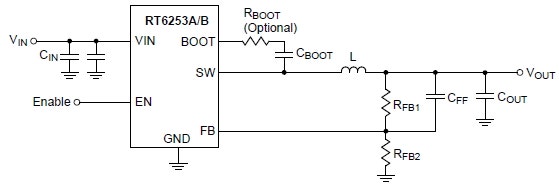

RT6253A/RT6253B 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>集成 95mΩ/50mΩ MOSFET </li><li>电流持续输出能力 <ul class="lv2"> <li></li><li>TSOT-23-6(FC) 封装：3A </li><li>SOT-563(FC) 封装：2.5A </li></ul> </li><li>输入电压范围：4.5V~17V </li><li>输出电压可调范围：0.765V~7V </li><li>ACOT<sup>®</sup> 改进型固定导通时间控制架构 <ul class="lv2"> <li></li><li>瞬态回应速度快 </li><li>对输出端使用低 ESR 陶瓷电容进行了优化 </li></ul> </li><li>回馈参考电压精度：±1%（典型值） </li><li>可选工作模式 <ul class="lv2"> <li></li><li>自动 PSM 节能模式（RT6253A） </li><li>强制 PWM 模式（RT6253B） </li></ul> </li><li>固定工作频率：580kHz </li><li>使能控制和内部固定的 1ms 软启动 </li><li>安全的输出预偏置启动过程 </li><li>输入欠压锁定保护 </li><li>保护功能 <ul class="lv2"> <li></li><li>打嗝模式的输出欠压保护 </li><li>上下桥过流保护和过热保护 </li></ul> </li><li>符合 RoHS 规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

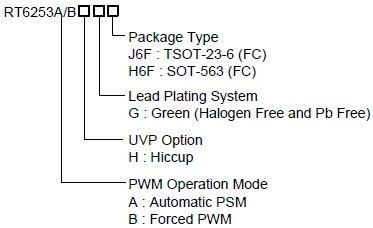

RT6253A/RT6253B 订购信息
