RT6296D为输出电流2A的高效率电流模式同步降压型DC/DC转换器，输入电压范围可从4.5V至17V。内部整合了高侧100mΩ和低侧40mΩ的MOSFETs来达到高转换效率。由于具有内部补偿机制的电流模式固定导通时间(CMCOT)操作，可允许系统在大范围的负载变动、输出电容变化的操作条件下仍有优良的暂态响应特性。逐周期电流限制保护避免输出短路。RT6296D提供完整的保护功能，包含输入欠电压闭锁、输出欠电压保护、过电流保护和过温度保护。PWM频率可以借由EN/SYNC脚位调整。RT6296D提供TSOT-23-8 (FC)封装。

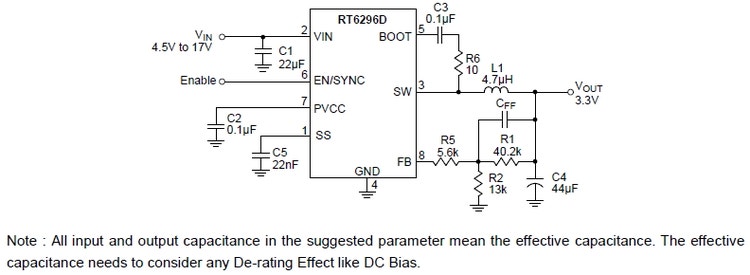

RT6296D 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V至17V输入电压范围 </li><li>2A输出电流 </li><li>内建N-MOSFET开关元件 </li><li>电流模式控制 </li><li>固定操作频率：800kHz </li><li>与外部时钟同步：200kHz至2MHz </li><li>逐周期的过电流保护 </li><li>轻载时操作于Power-Save Mode </li><li>外部软启动功能 </li><li>输入欠电压锁定机制 </li><li>输出欠电压保护 </li><li>过热保护 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

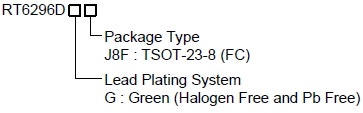

RT6296D 订购信息
