RT6296F是高效率的电流模式同步Buck转换器，负载能力2A，输入电压范围为4.5V~17V，集成100mΩ上桥开关和40mΩ下桥开关以获得高转换效率。它因采用电流模式控制架构而具备快速瞬态回应能力，使用了内部补偿机制，具有Power Good输出，使用逐周期电流限制方式应对输出端短路问题，还具有输入欠压锁定保护、输出欠压保护、过流保护和热关机保护等特性，可通过EN/SYNC引脚调节PWM工作频率，封装形式为TSOT-23-8(FC)。

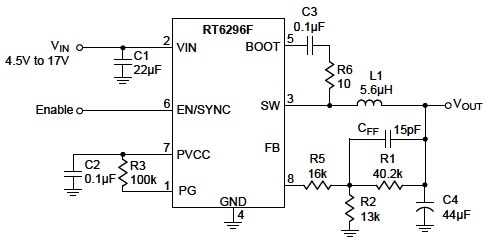

RT6296F 电路图
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>输入电压范围：4.5V~17V </li><li>负载能力：2A </li><li>内部集成N-MOSFET开关 </li><li>电流模式控制架构 </li><li>500kHz固定工作频率 </li><li>可同步外部时钟频率范围：200kHz~2MHz </li><li>逐周期电流限制 </li><li>内部软起动设计 </li><li>轻载时以节能模式工作 </li><li>Power Good指示 </li><li>输入欠压锁定保护 </li><li>输出欠压保护 </li><li>热关机保护 </li><li>符合RoHS规范，不含卤素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

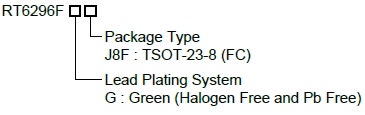

RT6296F 订购信息
